VYR-37

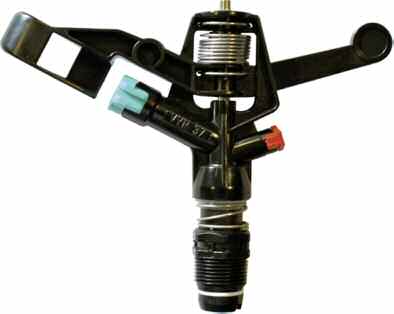

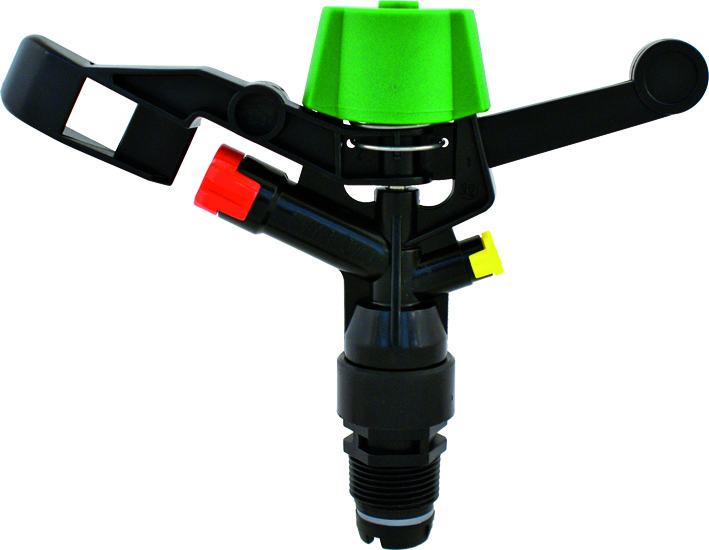

AG full-circle sprinkler VYR-37 (Plast. 3/4")

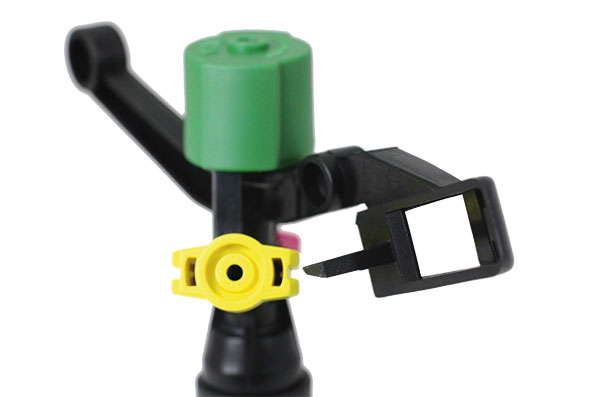

This model has asimilar configuration to VYR-36. This medium flow sprinkler is made ​​of plasti, and the connection could be male or female 3/4". With two nozzles, the main 25° long range and the secondary also 25° but slotted baffle short radius. In this case the plastic nozzles are always nylon connection system "bayonet" for quick and easy assembly. this allows us to expedite the cleaning of the nozzles for clogging. The blade in this case has no counterweight which makes it a much more lighter model than VYR-36. The VYR-37 is also one of the most standard spray irrigation sprinklers worldwide. Its routine use are 15x15 or 15x18 frames at 3.5 BAR working with average flow of 1800 L / h. It's widely used in all kinds of field crops: cereals, sugar beet, alfalfa, vegetables, etc..

Get more information from your nearest distributor

Contact us now

Models

VYR 37 plástico rosca 3/4" M ANTIHELADA

  • Weight: 150 gr.
  • Units per box: 100
  • Weight per box: 15 kg.

VYR 37 plástico rosca 3/4" F ANTIHELADA

  • Weight: 150 gr.
  • Units per box: 100
  • Weight per box: 15 kg.

Specifications

Range distance: 13 - 18 m.
Flow: 660 - 3270 l/h.
Working pressure: 1.75 - 4.5 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary nozzle or plug.
Trajectory angles: 25º and 25º.
Maximum stream height: 2.4 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 16x16R, 15x18T, 16x16T meters.

Dimensions

  • Height: 14 cm.
  • Width: 17 cm.
  • Weight: 150 gr.
  • Units per box: 100
  • Weight per box: 15 kg.

Applications

  • This model is compatible with almost any type of crop and with a wide range of pluviometric and spacing conditions, suitable for a large number of different crop types.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Medium flow agricultural impact sprinkler.
  • 3/4" male or female connection.

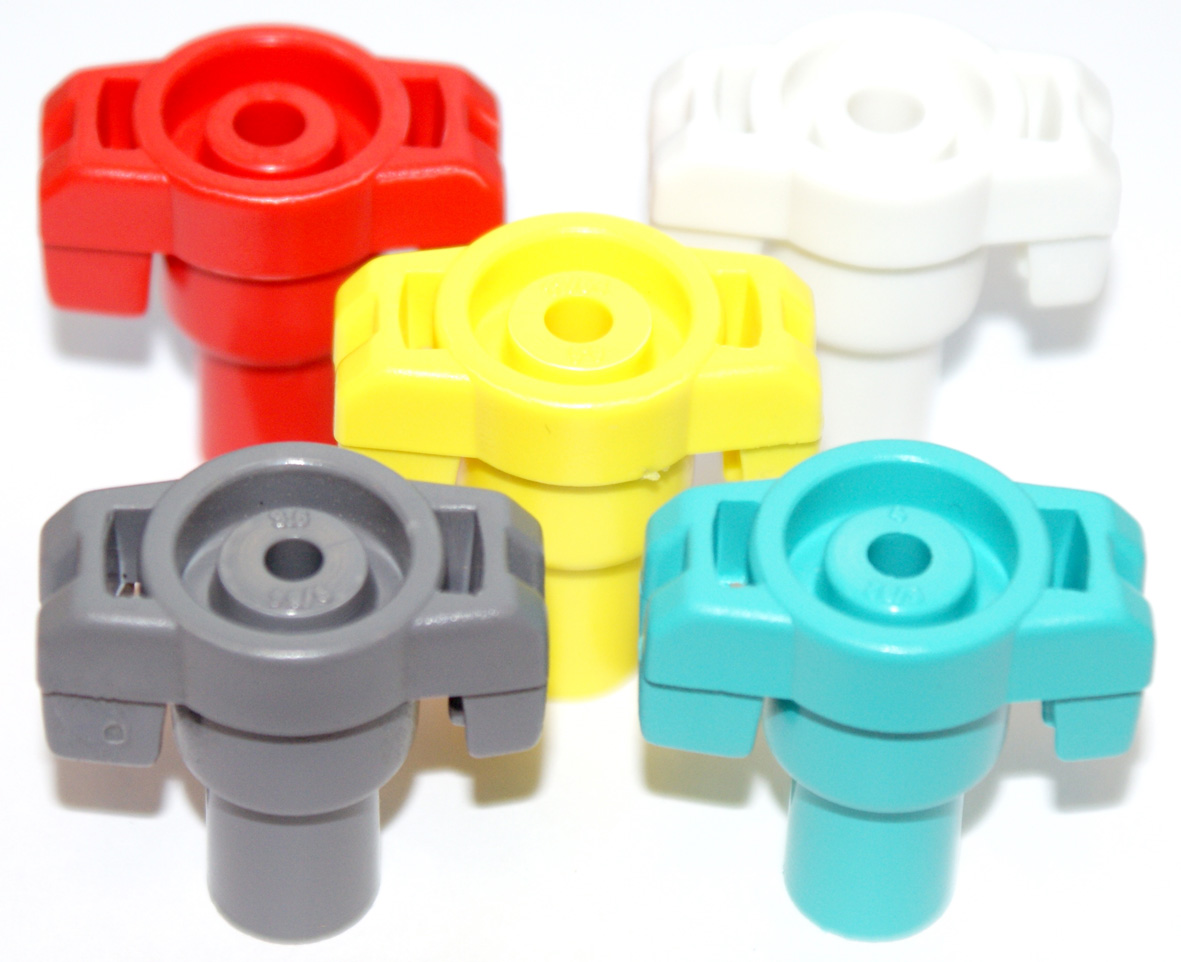

  • Colour-coded "click" bayonet nozzles.
  • Made of plastic and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 25º and 20º.
  • Body specially designed for bayonet nozzles.
  • Plastic sprinkler, leader in the agricultural market.

Options

  • Threads in BSP or NPT under demand.
  • Models with male or female connection.
  • Assembled on a pressure regulator for self-compensation of pressure and flow.
