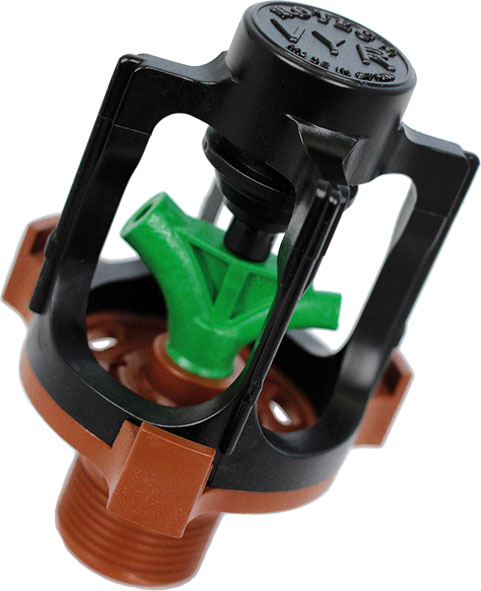

VYR 4000 ROTEC

Low pressure rotor sprinkler full/part circle 3/4” male

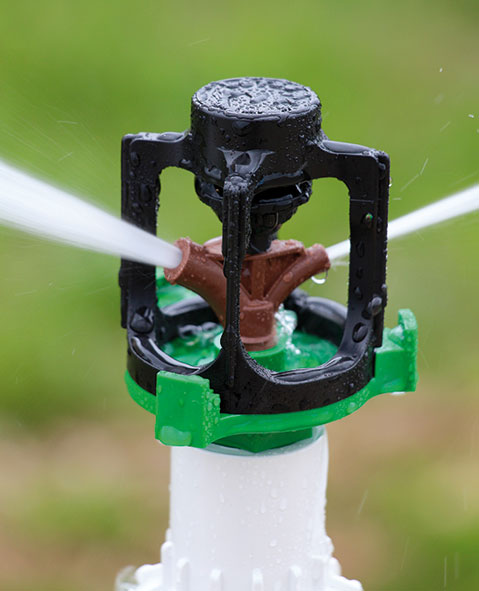

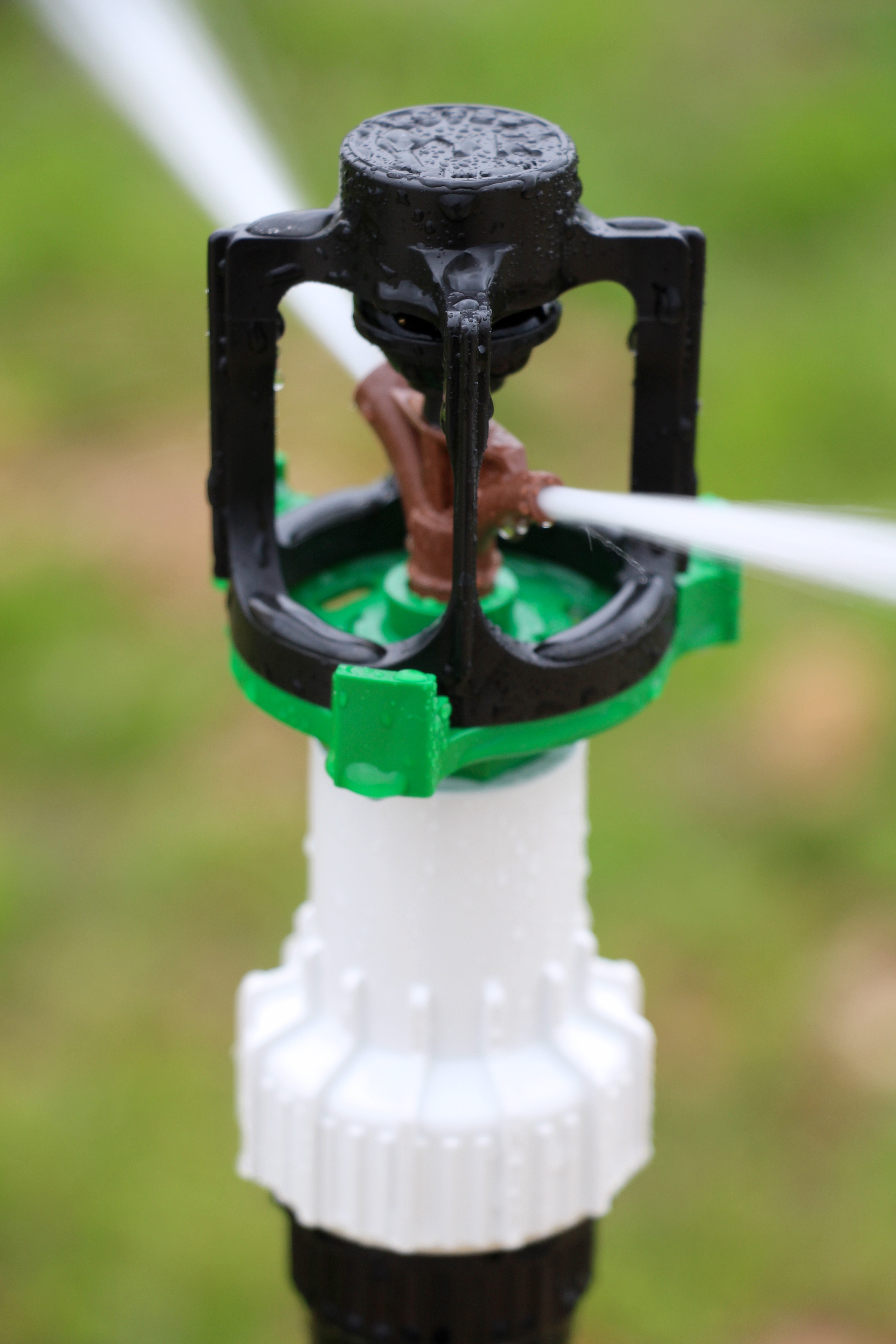

The new sprinkler VYR-4000 ROTEC is a rotating low pressure sprinkler with outlet 3/4 "male. Technology with silicone brake . It features a double and single interchangeable nozzles and plates. It also has an adjustment system for the rotational speed with an adjustable two-speed motor. This sprinkler is a model of low-medium flow and low pressure suitable for agriculture farms, nurseries, and mining industry with coverage up to 55 ft. between sides and heads.

Get more information from your nearest distributor

Модели

VYR 4000 ROTEC

Bес: 77 gr.
Штук в коробке: 50
Вес коробки: 4 kg.

Технические характеристики

Range: 26-46 Ft. (8-14.0 m.)
Flow rate: 2,4-8,2 GPM (560-1900 L/h.)
Pressure: 26-65 PSI (1.8-4.5 BAR.)

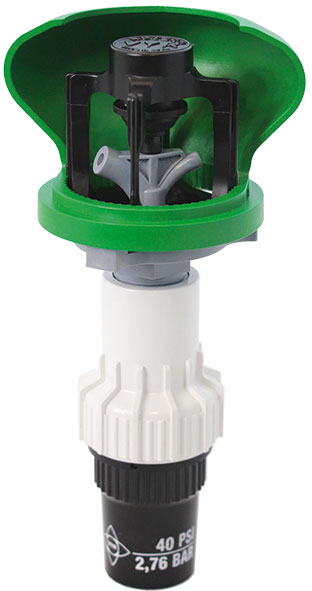

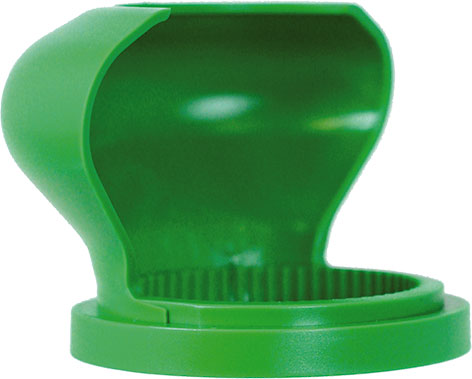

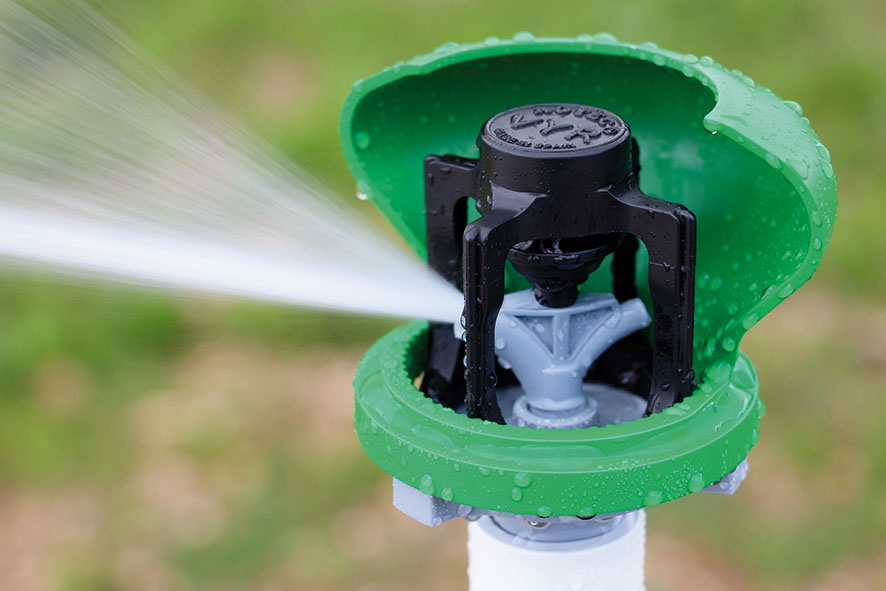

Sector: Circular or 180º degrees with the deflector.

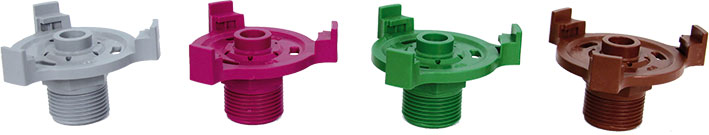

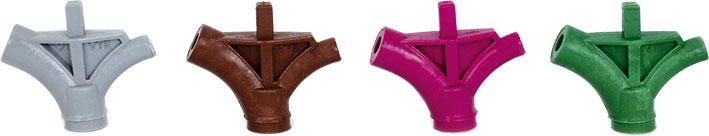

Nozzles: A nozzle plate with one or two outputs.
Trajectory angles: 25º and 15º.
Maximum height jet of 8,2 Ft. (2.3 m.)
Rotation time: Depending on the pressure and nozzles is uniform and continuous.
Coefficient of Uniformity above 90% in frames of 33x40R , 40x40T, 40x50T, 50x50R and 50x50T ft.

Размеры

Bысота: 9,5 cm.
Ширина: 6,5 cm.
Bес: 75 gr.
Штук в коробке: 50
Вес коробки: 3,75 kg.

Applications

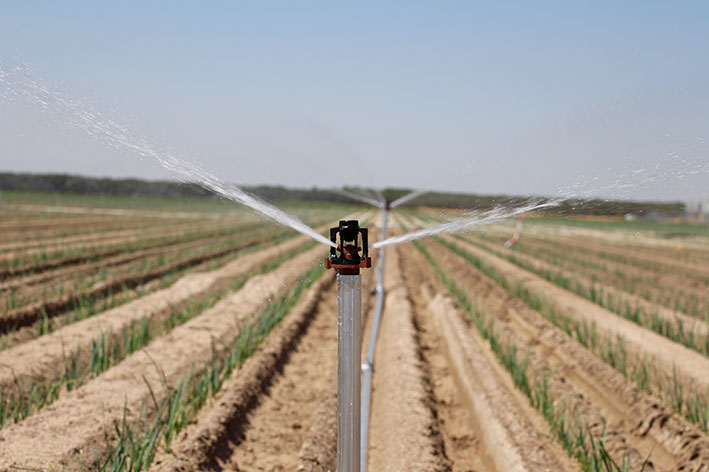

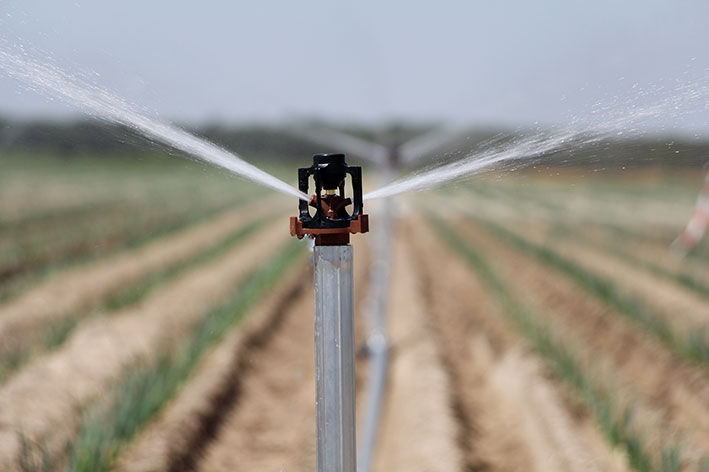

Horticultural plantations, cereals, tubers, legumes and fruit.

Особенности

Agricultural rotor sprinkler for low pressure/flow irrigation with silicone engine technology.
Pattented 2-speed motor selector.
3/4” male connection.
Made of super-resistant plastic with UV treatments.
Rotating joints of high strength.
Angles of nozzles are 25º and 15º degrees.
Special design for coverage irrigation at low pressures.
Secondary plate deflector hole can be opened or pluged.

Oпции

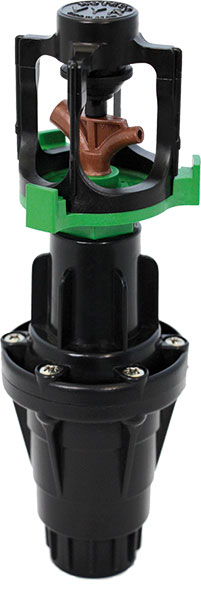

Pressure regulator VYR-19 to offset the pressures of your irrigation system.
