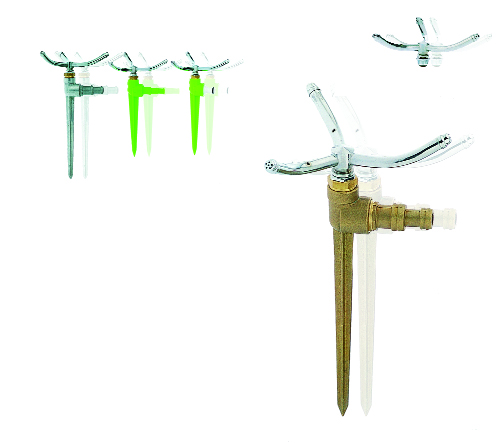

VYR-968

Specifications

Reach: 4 - 7 m.
Flow: 360 - 1,044 l/h.
Working pressure: 0.5 - 3.5 bar.
Area: Circular.
Nozzles: A multi-jet nozzle.
Maximum stream height: 2 m.
Rotation time: Irregular
Uniformity coefficient higher than 90% in areas of 5x5R, 6x6T, 6x7T.

Dimensions

• Height: 13 cm.
• Width: 12 cm.
• Weight: 220 gr.
• Units per box: 10
• Weight per box: 2.2 kg.

Applications

• Public and private gardens.
• Horticultural plantations, floriculture and fruit trees.

Features

• Three-arm rotating sprinkler for gardening, agriculture, floriculture and greenhouses.
• Connection of the 3/8” male rotating head, and connection of the spike with a 15 and 20 mm hose coupling.
• Sprinkler made of chrome-plated brass and copper, and there are three models for the spike: plastic, aluminium and brass.
• Steel and rubber rotating joints.
• Three rotating perforated arms and spray sprinklers.
• Anti-sand filter.
• This sprinkler is strong and durable enough to work for many years in urban gardens in tough conditions, caused by vandalism and impact from maintenance equipment.

Options

• Adapter with reduction for 1/2" male.
• Assembled as a "complete support kit" on aluminium base.
• Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors.
• Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors.
