VYR-81 Quick Coupling Valves

Quick Coupling Valves

Irrigation outlet designed for permanent irrigation systems  in private gardens, municipal parks and sports facilities.

Get more information from your nearest distributor

Contact us now

Models

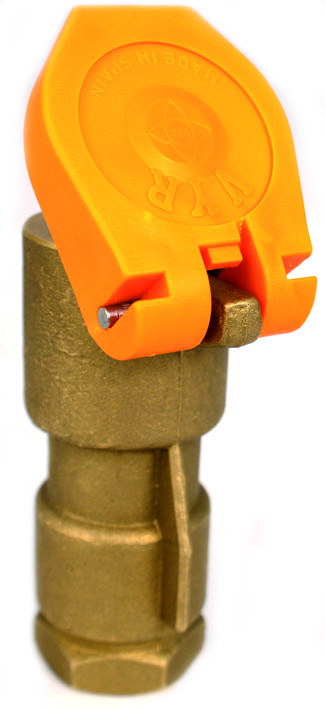

VYR-81 VALVULA DE ACOPLE RAPIDO CONEXIÓN 1" H (TAPA PLÁSTICO)

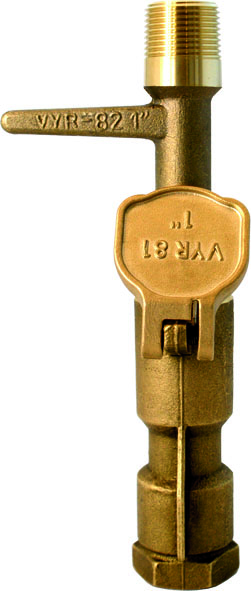

VYR-81 VALVULA DE ACOPLE RAPIDO CONEXIÓN 1" (TAPA LATÓN)

VYR-81 VALVULA DE ACOPLE RAPIDO 1" "AMERICANA" TAPA PLÁSTICO


Specifications

No information available

Dimensions

  • Height: 10 y 14 cm.
  • Width: 8 cm.
  • Weight: 475 y 830 gr.
  • Units per box: 50 o 30
  • Weight per box: kg.

Applications

  • Private gardens and municipal parks.
  • Sports facilities and golf courses.

Features

  • Irrigation outlet designed for permanent irrigation systems in private gardens, municipal parks and sports facilities.
  • Instant opening with the insertion and turning of a bayonet key. When the key is removed, the valve automatically closes.
  • Body made of brass, with stainless steel springs and shaft.
  • Brass or thermoplastic cover, depending on model.
  • These hydrants make water available at all points in the system, providing easily accessible connection points for hoses and sprinklers.
  • Ideal for providing supplementary irrigation.
  • Maximum flow of up to 16 m3/h.
  • Working pressure between 0.2 and 10 bar.
  • Pressure loss lower than 0.35 bar in maximum flows.

Options

  • Complete kit with key and swivel elbow.

Downloads

This product is not downloaded available
