VYR-70 VL

AG Full-circle sprinkler VYR 70VL (Brass 1")

The impact sprinkler VYR VL-70 is an agricultural full-circle model with 1" male or female connection. It's made of brass and stainless steel,and O-rings and washers, polyurethane and teflon of high quality.
This model" VL" has a long arm with attack on the main nozzle (long radius). Nozzle angles are 26 degrees to the main gunship (long radius) and 26 ° for the gunboat secondary (short radius).
The VYR VL-70 is used in full coverage irrigation with medium-high flow. His great mechanical and hydraulic design provides very important energy savings and optimal coverage ratio in its distribution.

Get more information from your nearest distributor

Contact us now

Models

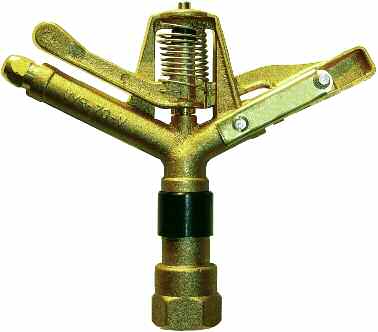

ASP VYR-70 VL C/D LATON ROSCA 1" F

  • Weight: 870 gr.
  • Units per box: 25
  • Weight per box: 22 kg.

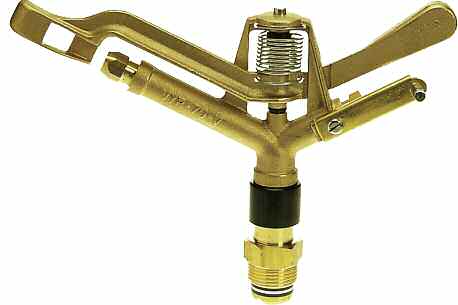

ASP VYR-70 VL C/D LATON ROSCA 1" M

  • Weight: 870 gr.
  • Units per box: 25
  • Weight per box: 22 kg.

Specifications

Range distance: 13.5 - 27 m.
Flow: 2000 - 9400 l/h.
Working pressure: 2.75 - 6 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary nozzle.
Trajectory angles: 26º and 26º.
Maximum stream height: 3.0 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 20x20R, 22x22T, 22x24T.

Dimensions

  • Height: 20 cm.
  • Width: 25 cm.
  • Weight: 870 gr.
  • Units per box: 25
  • Weight per box: 22 kg.

Applications

  • Used in all types of agricultural irrigation, generally with medium-high flow. Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Agricultural impact sprinkler with medium-high flow.
  • 1" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 26º and 26º.
  • Special design for long reach.
  • Used in full coverage irrigation with medium-high flow.

Options

  • Threads in BSP or NPT under demand.
  • Long or short arm.
  • Male or female connection.
