VYR-70

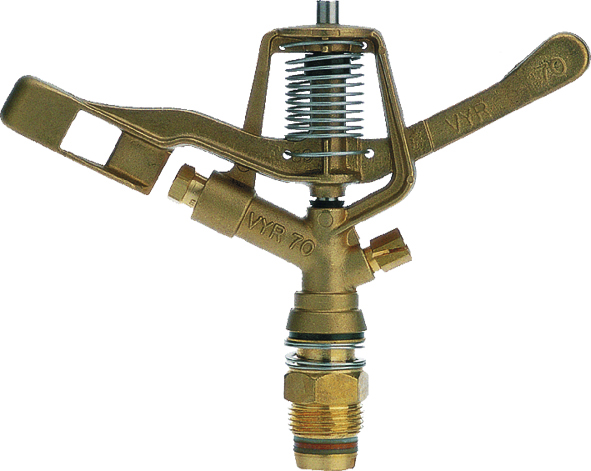

AG full-circle sprinkler VYR-70 (Brass 3/4")

The sprinkler VYR-70 is an agricultural circular sprayer made ​​of brass and has two references connection 3/4 "male and female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 620 and 3360 l / h, at pressures between 1.75 and 4.5 BAR and cover a range of between 13 and 18 meters. The sprinkler VYR-70 can work with one or two nozzles; The main nozzle is 26 ° degree angle to the horizontal plane and the secondary 22º. Their average time of rotation comes to be approximately 40 sec./rot. (45 PSI 11/64"x3/32" / 3 BAR, 4.40 x2, 40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 9x9 meters to 19x19 meters rectangular frames and 9x9 feet to 21x21 feet to triangular frames.
The most common use given is irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-70 LATON ROSCA 3/4" macho

  • Weight: 548 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

ASP VYR-70 LATON ROSCA 3/4" hembra

  • Weight: 548 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

Specifications

Range distance: 13 - 18 m.
Flow: 620 - 3360 l/h.
Working pressure: 1.75 - 4.5 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
Trajectory angles: 26º and 22º.
Maximum stream height: 2.6 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 18x18R, 20x20T, 22x20T.

Dimensions

  • Height: 15 cm.
  • Width: 20 cm.
  • Weight: 548 gr.
  • Units per box: 50
  • Weight per box: 27,5 kg.

Applications

  • Used in all types of agricultural irrigation, generally with medium-high flows. Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Medium flow agricultural impact sprinkler.
  • 3/4" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 26º and 22º.
  • Special design for long reach.
  • Used in full coverage irrigation with medium-high flow.

Options

  • Threads in BSP or NPT under demand.
  • Secondary nozzle with deflector slot or plug.
  • Assembled on a pressure regulator for self-compensation of pressure and flow.
