VYR-67

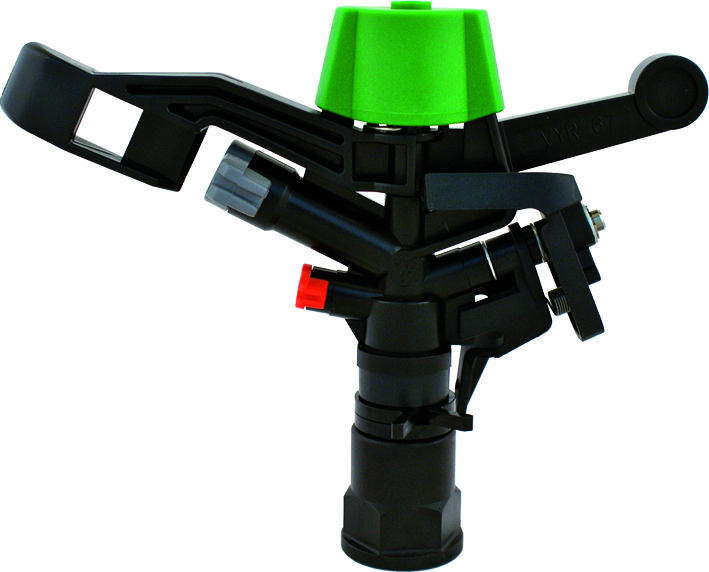

AG part-circle sprinkler VYR-67 (Plast. 3/4")

The VYR-67 is a part circle sprinkler made of plastic with a dynamic design that offers a perfect fit within a wide range of irrigation types. This is a 3/4" sprinkler made almost entirely of plastic except for the springs, axle and washers. It has two bayonet nozzles made ​​of plastic and coded with different colors for quick and easy differentiation of measures and compliance with international standards.
This model has the option to be mounted with or without weights on his shovel, depending on the working pressure to be used.
For optimum uniformity coefficient, our technicians recommend using this spray for 10x10 and 15x15 meter frames.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-67 plástico rosca 3/4" M ANTI HELADA

  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

ASP VYR-67 plástico rosca 3/4" H ANTIHELADA

  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 9 kg.

Specifications

Reach: 12 - 19 m.
Flow: 800 - 3,270 l/h.
Working pressure: 1.75 - 5 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 30º and 11º.
Maximum stream height: 2 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 15x18R, 18x18T, 18x20T meters.

Dimensions

  • Height: 16 cm.
  • Width: 18 cm.
  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 9 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle impact sprinkler, medium flow.
  • 3/4" male or female connection.
  • Made of plastic and stainless steel.
  • Arm without weights.
  • High-resistance rotating joints.
  • Two (2) bayonet nozzle with angles of 30º and 11º.
  • Part circle mechanical system using omega-clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with medium flow to cover the side and corner areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Plate with diffuser pin for the main jet.
  • Foldable tripod for mobile installation.
