VYR-66

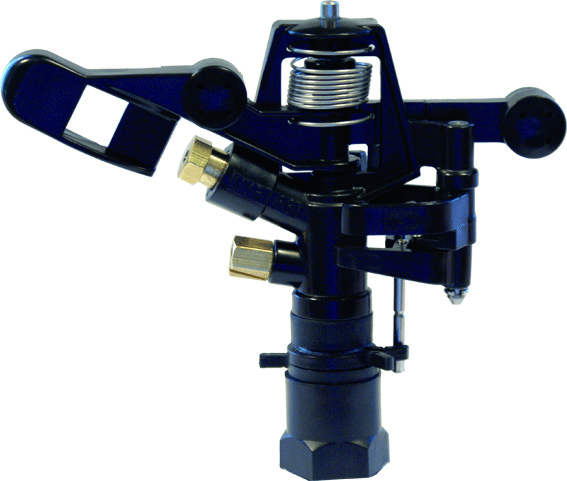

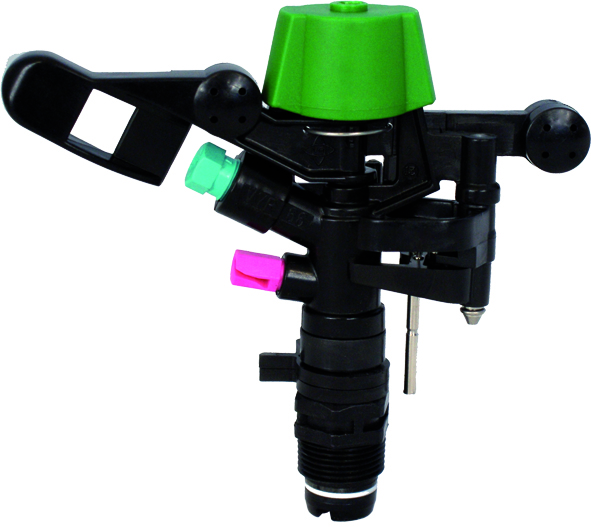

AG part-circle sprinkler VYR-66 (Plast. 3/4")

The sprinkler VYR-66 is a sectoral agricultural sprayer, molded with plastic and has two references connection 3/4 "male and female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel,  tetrafluoroethylene and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.

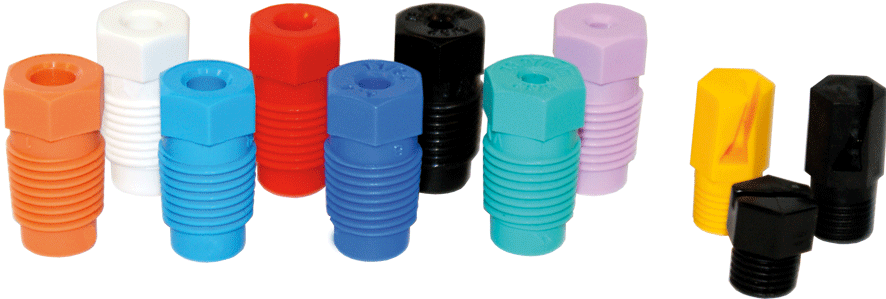

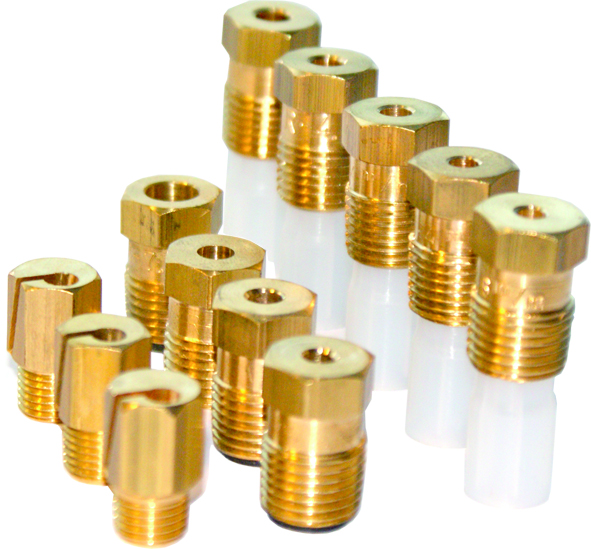

The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 800 and 3270 l / h, at pressures between 1.75 and 5 BAR and cover a range between 12 and 19 meters in diameter. The sprinkler VYR-66 can work with one or two nozzles; The main nozzle has 30 degrees of inclination from the horizontal plane and the secondary 11 º. Its average time of rotation comes to be approximately 25 sec. / 360 (3 BAR, 4.40 x2, 40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 8x8 meters to 18x18 meters rectangular frames and 8x8 meters to 19x19 meters to triangular frames.

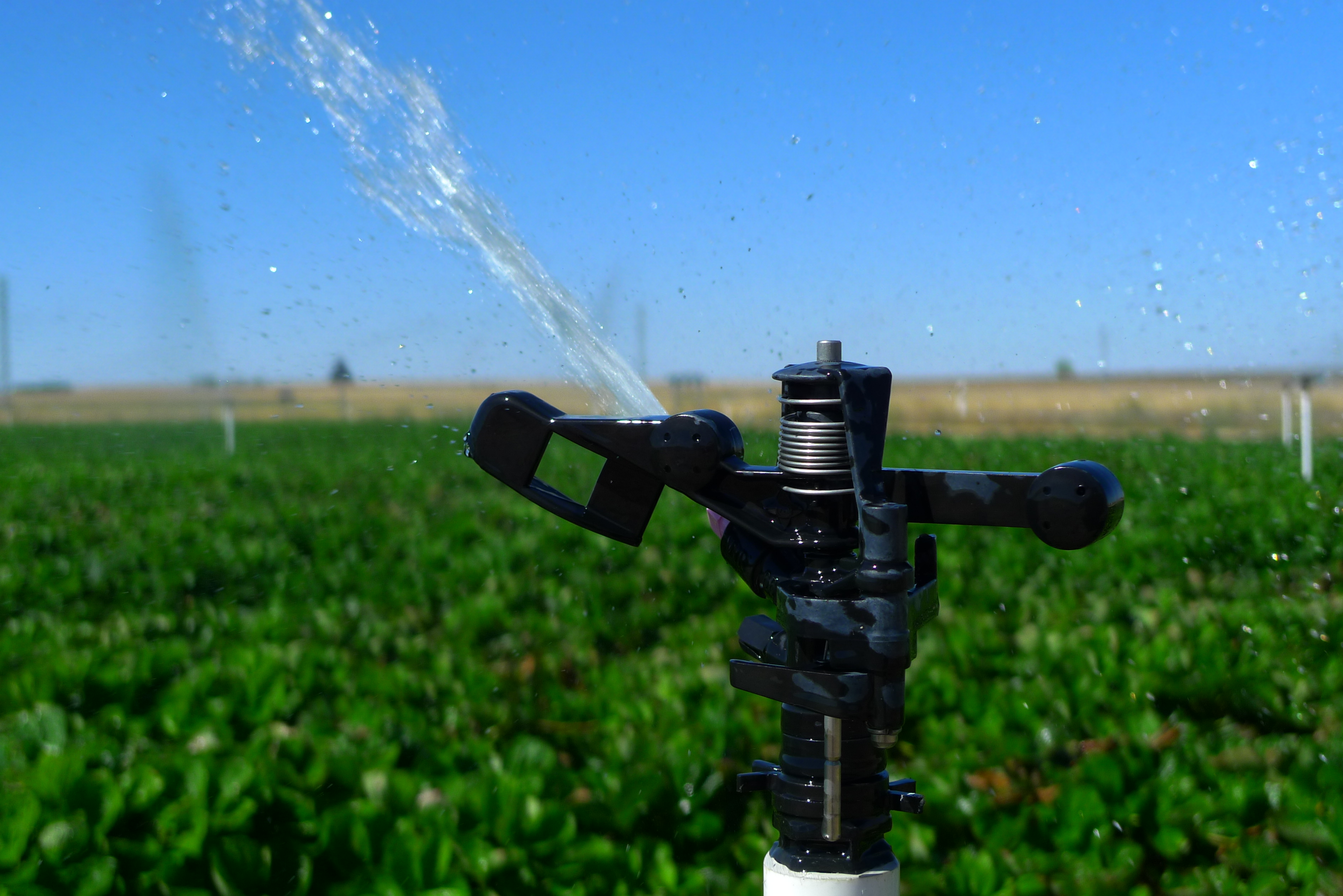

The most common use given is for irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR 66 PLAST. S/D ROSCA 3/4" M

  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

CONJUNTO TORNILLO DIFUSOR PARA VYR-66 PLASTICO

ASP VYR 66 PLAST. C/D ROSCA 3/4" M

  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

ASP VYR 66 PLAST. S/D ROSCA 3/4" H

  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

ASP VYR 66 PLAST. C/D ROSCA 3/4" H

  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

Specifications

Reach: 12 - 19 m.
Flow: 800 - 3,270 l/h.
Working pressure: 1.75 - 5 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 30º and 11º.
Maximum stream height: 2 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 15x18R, 18x18T, 18x20T meters.

Dimensions

  • Height: 16 cm.
  • Width: 18 cm.
  • Weight: 182 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle impact sprinkler, medium flow.
  • 3/4" male or female connection.
  • Made of plastic and stainless steel.
  • Arm with 2 steel weights inserted.
  • High-resistance rotating joints.
  • Nozzle angles of 30º and 11º.
  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with medium flow to cover the side and corner areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Plate with diffuser pin for the main jet.
  • Foldable tripod for mobile installation.
