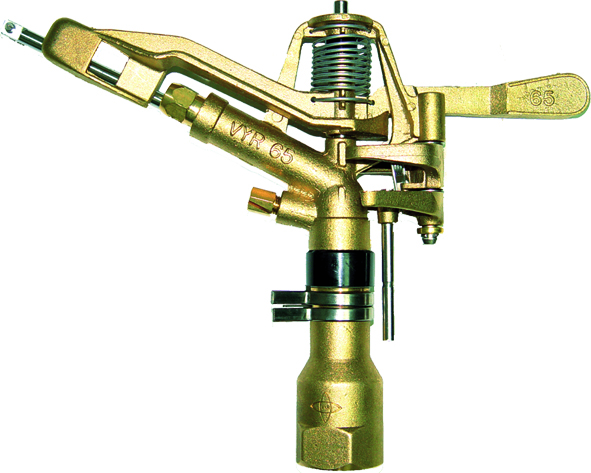

VYR-65

AG Part-circle sprinkler (Brass 1")

The sprinkler VYR-65 is a part-circle agricultural sprinkler, made of brass with 1" male or female thread connection and with or without diffuser. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel , Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
The wide range of brass mouthpieces offer a number of possible combinations among nozzles. This sprinkler is designed to work under some flow ranges between 2240 and 7840 l / h, at pressures between 3.5 and 6 and BAR with a coverage range between 16 and 24 meters in diameter. The main nozzle is 28 ° degree angle to the horizontal plane and the secondary 14 º. Their average time of rotation comes to be approximately 35 sec./rot.
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 15x15 meters to 24x24 meters rectangular frames and 15x15 meters to 26x26 meters triangular frames.
The most common use given is irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-65 LATON C/D ROSCA 1" M

  • Weight: 1280 gr.
  • Units per box: 15
  • Weight per box: 20 kg.

CONJUNTO TORNILLO DIFUSOR INOXIDABLE PARA VYR-65

ASP VYR-65 LATON ROSCA 1" M

  • Weight: 1250 gr.
  • Units per box: 15
  • Weight per box: 19 kg.

ASP VYR-65 LATON ROSCA 1" H

  • Weight: 1392 gr.
  • Units per box: 15
  • Weight per box: 21,5 kg.

ASP VYR-65 LATON C/D ROSCA 1" H

  • Weight: 1420 gr.
  • Units per box: 15
  • Weight per box: 21,5 kg.

Specifications

Reach: 16 - 24 m.
Flow: 2240 - 7,840 l/h.
Working pressure: 3.5 - 6 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 28º and 14º.
Maximum stream height: 3 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 24x24R, 25x25T, 25x26T.

Dimensions

  • Height: 24 cm.
  • Width: 25 cm.
  • Weight: 1420 gr.
  • Units per box: 15
  • Weight per box: 21,5 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle agricultural impact sprinkler, medium-high flow.
  • 1" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 28º and 14º.
  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with medium-high flow to cover the side and corner areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Rod with jet breaker diffuser pin for the main nozzle.
  • Foldable tripod for mobile installation
