VYR-6154

Modular 4" Plastic Hydraulic Valve

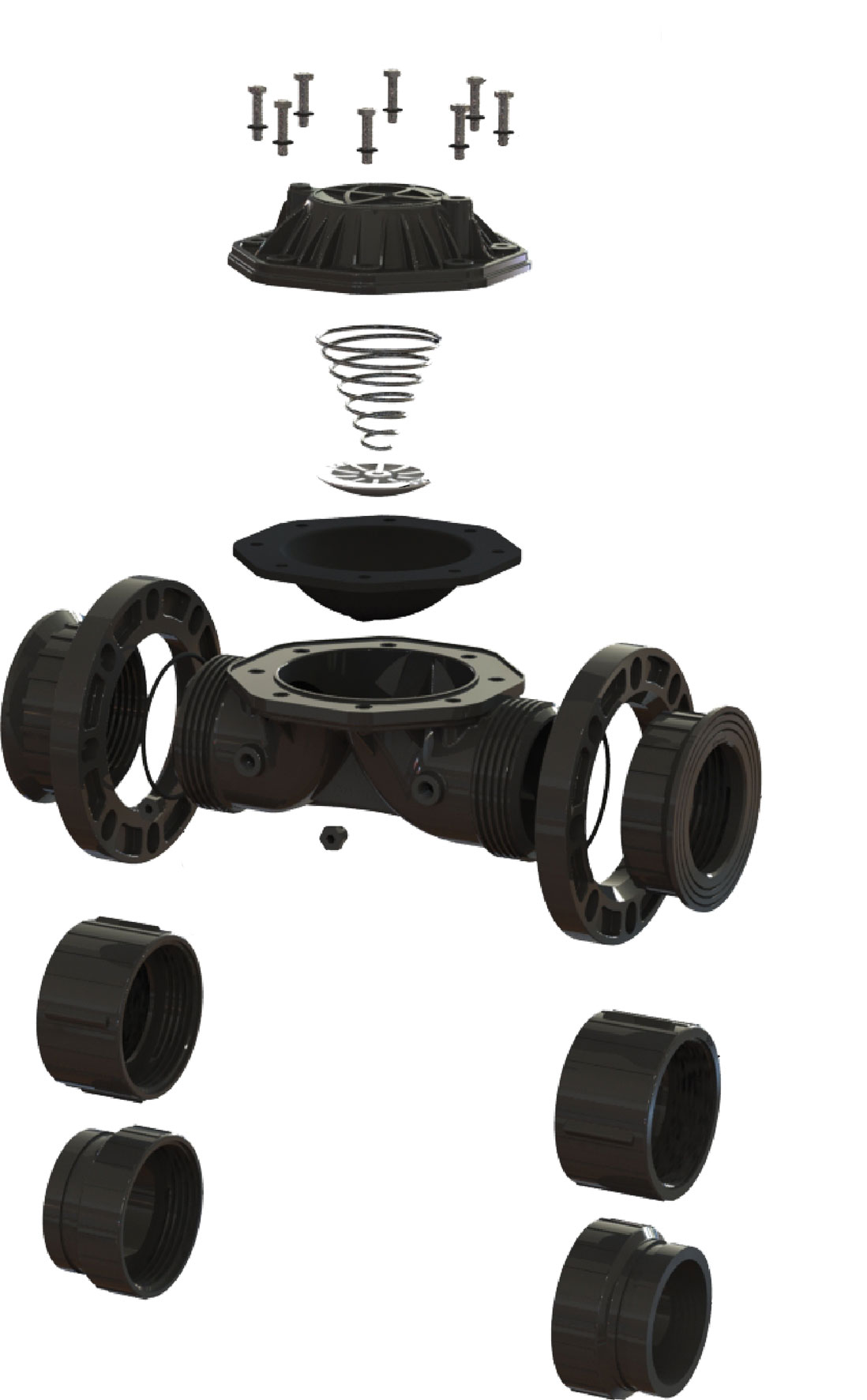

VYR-6154 is a 4 "hydraulic valve, made of plastic and reinforced with nylon and INOX steel spring and diaphragm reinforced also with high strength nylon mesh. Its modular design allows us to configure the type of connection to the pipe network with different options: Thread, flange, slot, PVC glued, and electro-fusion.

Get more information from your nearest distributor

Contact us now

Models

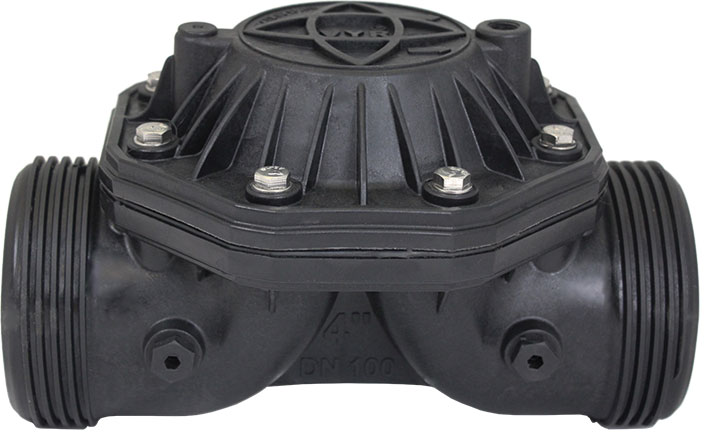

BASIC VALVE VYR-6154 - 4"

  • Weight: 2,5 gr.
  • Units per box: 2
  • Weight per box: 5 kg.

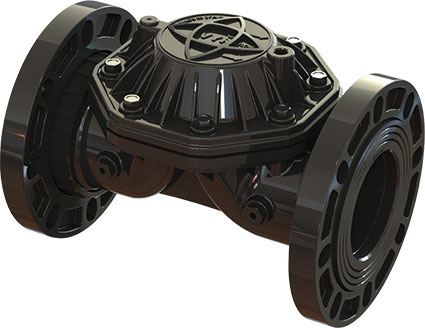

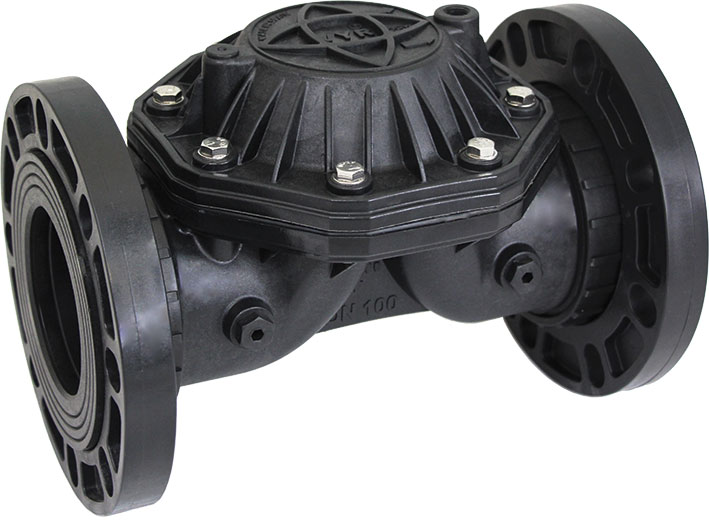

FLANGE VALVE VYR-6154 - 4"

  • Weight: 4,1 gr.
  • Units per box: 2
  • Weight per box: 8,2 kg.

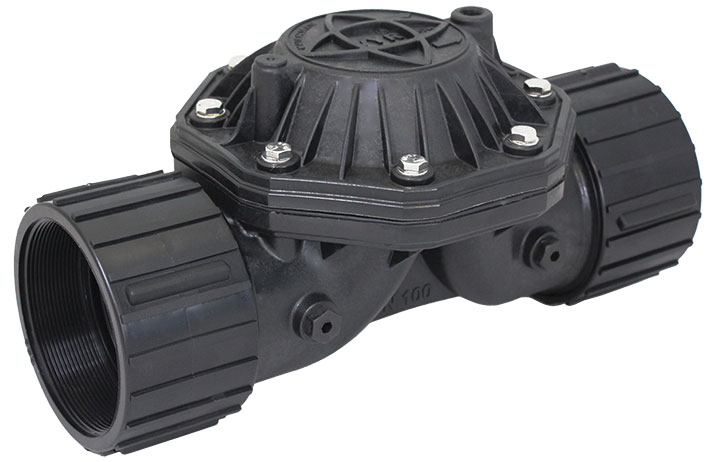

THREAD VALVE VYR-6154 - 4"

  • Weight: 3,2 gr.
  • Units per box: 2
  • Weight per box: 6,4 kg.

THREAD VALVE VYR-6154 - 4"

  • Weight: 3,2 gr.
  • Units per box: 2
  • Weight per box: 6,4 kg.

Specifications

· Measures: 4 "(DN 100)
· Flow: 20 - 170 m3 / h. ( 88 - 748 GPM)
· Working pressure: 0,5 - 4 BAR or 1 - 10 BAR 7 PSI - 58 PSI or 15 PSI - 145 PSI

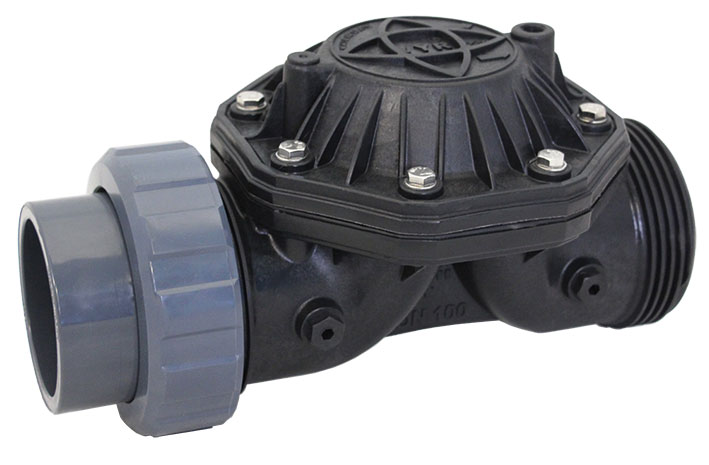

· Connections: BSP / NPT thread, ISO / ANSI / BS flange, Slot, PVC glue, PE electro-fusion.

Dimensions

  • Height: 316 cm.
  • Width: 220 cm.
  • Weight: 2,5 gr.
  • Units per box: 2
  • Weight per box: 5 kg.

Applications

  • · Agriculture, gardening and industry with a perfect modular adaptation to collectors of any kind.

Features

  • · Special male thread connection to connect to different types of adapters: flange, thread, slot, glue pvc, PE elect.-fusion.
  • · High flow linear design. · Made of polyamide with fiberglass and with additives for the protection of UV radiation.
  • · Chamber diaphragm with natural rubber reinforced with nylon.
  • · Stainless steel spring.

Options

  • · Two types of membrane spring low or high pressure according to the needs of the customer (PN-4 or PN-10).
  • · On demand with ON-OFF-AUTO hydraulic opening, regulating pilots and pressure holders, solenoid, etc.
