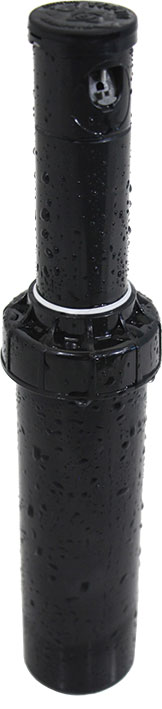

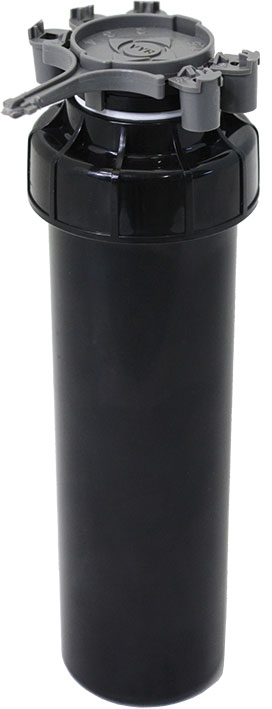

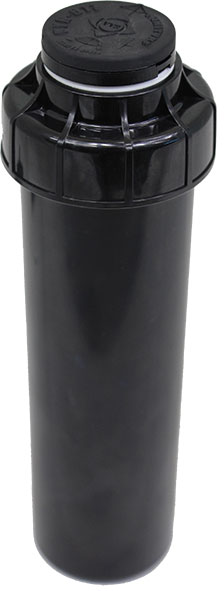

VYR-611 MINITURF (1/2")
1/2" Gear Drive Rotor
GENERAL PROPERTIES:· Sprinkler with gear drive technology using water-lubricated gears. Silent irrigation system.
· Controllable from the cover using the multi-function key.
· 1/2” female connection.
· Made of delrin plastic and stainless steel.
· Teflon, steel and rubber rotation joints.
· Stainless steel spring with continuous tension.
· Easily adjustable irrigation area because of the internal system of overlapping clips. Depending on the positioning of the "part circle clip system", this sprinkler has the ability to operate in 4 positions of 15º, 90º, 180º, 270º and 360º.
· Wide range of “water curtain" nozzles with excellent distribution.
· Built-in check valve (8.8 m water column).
· Removable grit filter for maintenance cleaning.
TECHNICAL SPECIFICATIONS:
· Reach: 5,5- 11 m / 18 - 36 ft.
· Flow: 160 - 1.000 L/H / 42 - 264 GPH
· Working pressure: 2 - 4 BAR / 29 - 58 PSI
· Area: Full or part circle.

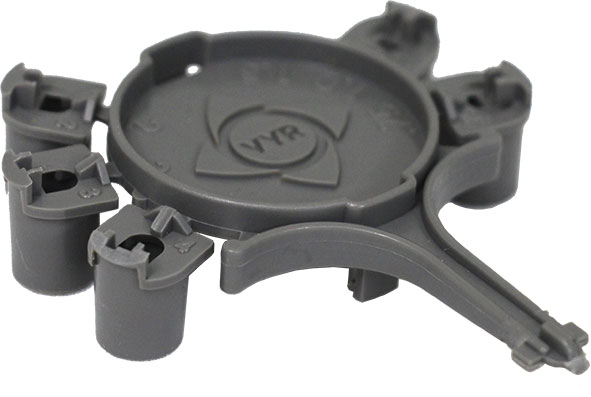

· Nozzles: A multi-jet nozzle set made up of short and medium range with 6 different size from 0,75 to 4.
· Trajectory angles: 25º standard angle .
· Maximum stream height: 2 m / 6,6 ft
· Rotation time: 360º between 1 and 3 minutes.
· Uniformity coefficient higher than 90% in areas of 7x7R, 10x10T, 12x12T m / 23x23R, 33x33T, 39x39R ft.
APPLICATIONS:
· Series VYR-603 gear drive sprinklers are designed for high performance and durability.
· They are used in residential, urban or commercial areas.
MEASUREMENTS:
· Height: 17 cm / 6,7 in
· Width: 5,5 cm / 2,2 in
· Pop-up: 11 cm / 4,3 in
· Weight: 150 g / 0,33 Lbs

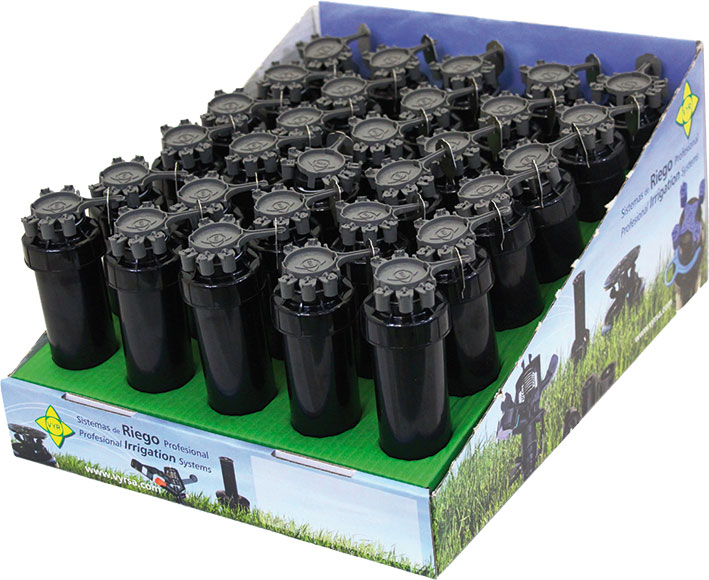

· Units per box: 40
OPTIONS:
· Check valve in filter.
· 3/4" 24V micro-valve with built-in filter.
· Assembled as a "complete support kit" on a 1.3 m galvanized stake with microtube and connectors.
Get more information from your nearest distributor
Contact us nowModels
VYR-611
- Weight: 180 gr.
- Units per box: 30
- Weight per box: 5,5 kg.
