VYR-60

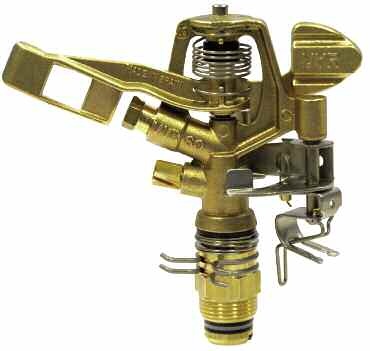

AG part-circle sprinkler VYR-60 (Brass 3/4")

The sprinkler VYR-60 is a sectorial agricultural sprayer made of brass and has two references connection 3/4 "male and female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 800 and 3300 l / h, at pressures between 1.75 and 5 BAR and cover a range of between 12 and 19 meters in diameter. The sprinkler VYR-60 can work with one or two nozzles; The main nozzle has 24 degrees of inclination from the horizontal plane and the secondary 12. Their average time of rotation comes to be approximately 30 sec. / 360 (3 BAR, 4.40 x2, 40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 8x8 meters to 16x16 meters on rectangular frames and 8x8 meters to 19x19 meters on triangular frames.

Get more information from your nearest distributor

Contact us now

Models

VYR-60 part-circle brass sprinkler 3/4" MALE w/2 nozzles

  • Weight: 608 gr.
  • Units per box: 25
  • Weight per box: 16 kg.

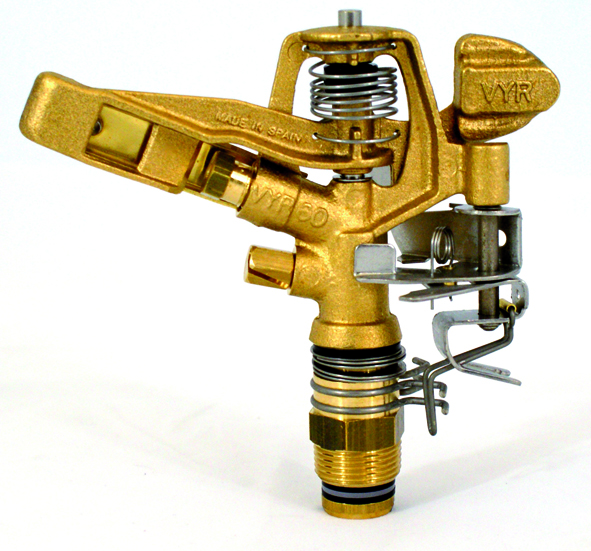

VYR-60 part-circle brass sprinkler 3/4" MALE w/2 nozzles W/DIFFUSER

  • Weight: 608 gr.
  • Units per box: 25
  • Weight per box: 16 kg.

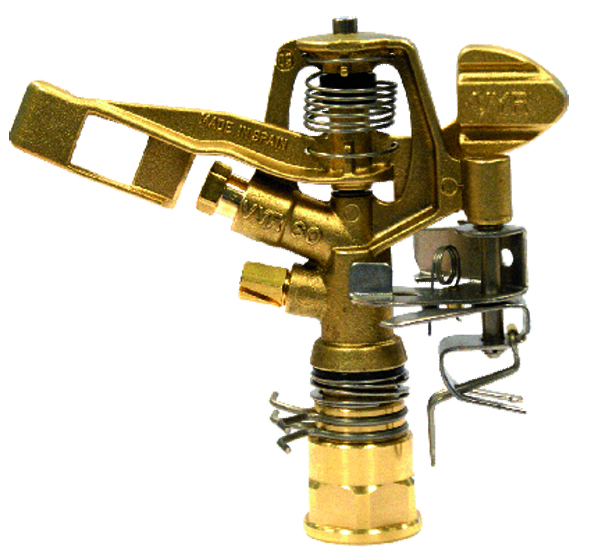

ASP SECT VYR-60 LATON S/D, ROSCA 3/4" H

  • Weight: 590 gr.
  • Units per box: 25
  • Weight per box: 15,5 kg.

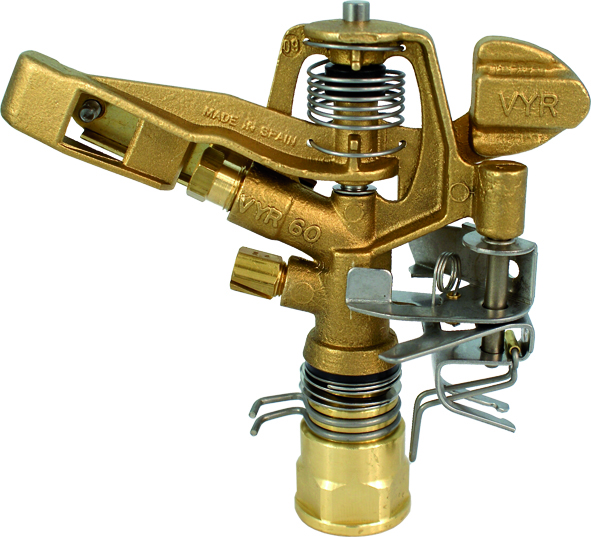

ASP SECT VYR-60 LATON C/D, ROSCA 3/4" H

  • Weight: 623 gr.
  • Units per box: 25
  • Weight per box: 16 kg.

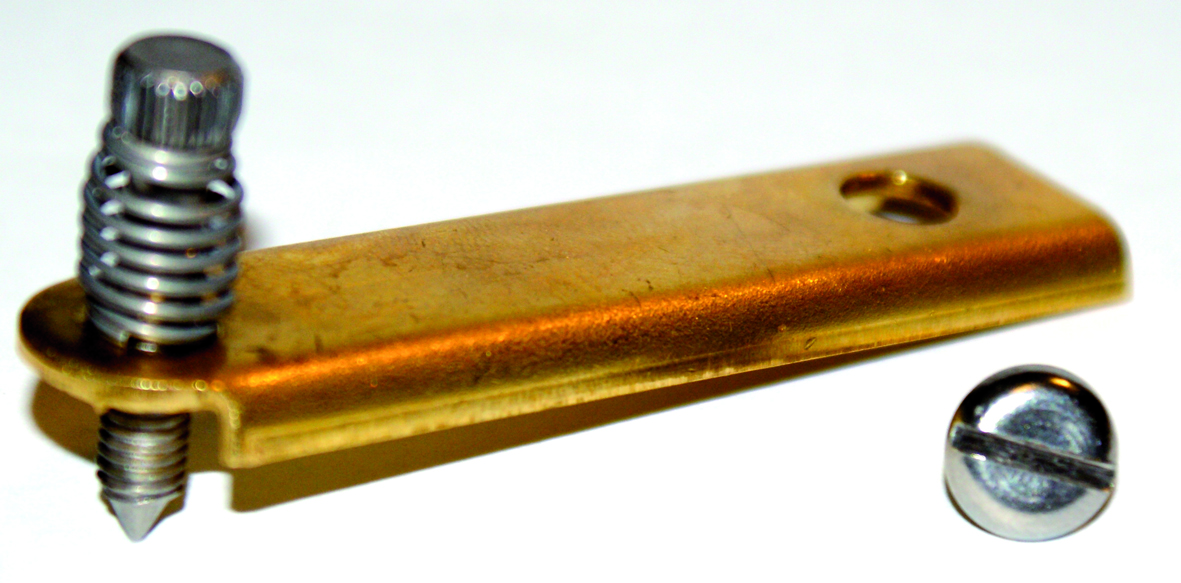

DIFFUSER PIN FOR VYR-60

Specifications

Reach: 12 - 19 m.
Flow: 800 - 3,270 l/h.
Working pressure: 1.75 - 5 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 24º and 12º.
Maximum stream height: 2 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 15x18R, 18x18T, 18x20T meters.

Dimensions

  • Height: 16 cm.
  • Width: 18 cm.
  • Weight: 608 gr.
  • Units per box: 25
  • Weight per box: 16 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle impact sprinkler, medium flow.
  • 3/4" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 24º and 12º.

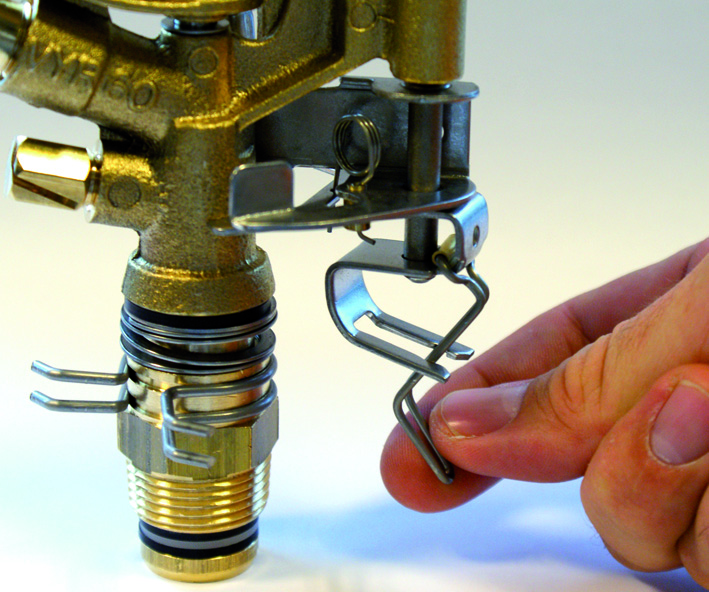

  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with medium flow to cover the side and corner areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Plate with diffuser pin for the main jet.
  • Foldable tripod for mobile installation.
