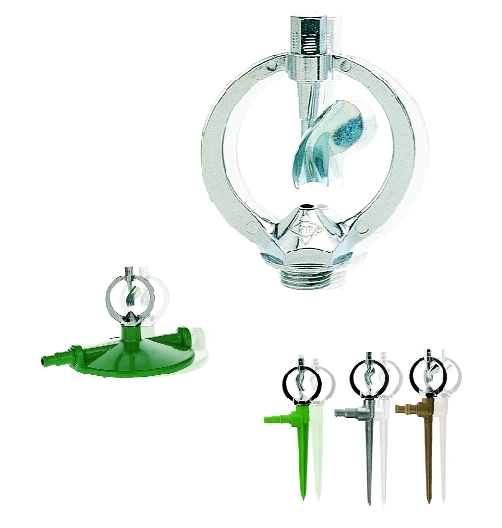

VYR-59

Specifications

Reach: 4 - 6 m.
Flow: 360 - 1,044 l/h.
Working pressure: 0.5 - 3.5 bar.
Area: Circular.
Nozzles: One nozzle.
Trajectory angles: 38º.
Maximum stream height: 2.5 m.
Rotation time: Irregular
Uniformity coefficient higher than 90% in areas of 10x10R, 12x12T, 12x13T.

Dimensions

• Height: 9 cm.
• Width: 10 cm.
• Weight: 144 gr.
• Units per box: 150
• Weight per box: 22 kg.

Applications

• Public and private gardens.
• Horticultural plantations, floriculture and fruit trees.
• Also for other industrial uses (cleaning out trailers and tankers) or with livestock (irrigation for pig farms to add moisture and lower the temperature).

Features

• Riser-mounted rotating sprinkler for gardening, agriculture, floriculture and greenhouses.
• 1/2” male connection.
• Made of chrome-plated Zamac and copper.
• Steel and rubber rotating joints.
• Rotating diffuser and deflector.
• This sprinkler is strong and durable enough to work for many years in urban gardens in tough conditions, caused by vandalism and impact from maintenance equipment.

Options

• Assembled as a "complete support kit" on a brass, aluminium or plastic spike.
• Assembled as a "complete support kit" on an aluminium base.
• Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors.
