VYR-56

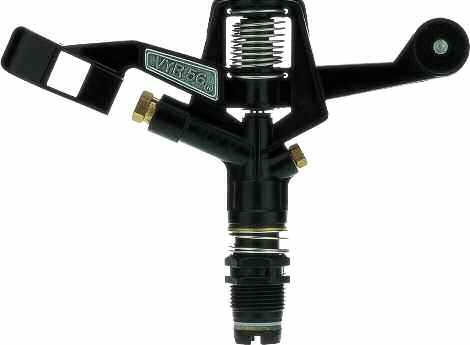

AG full-circle sprinkler VYR-56 (Plast. 3/4")

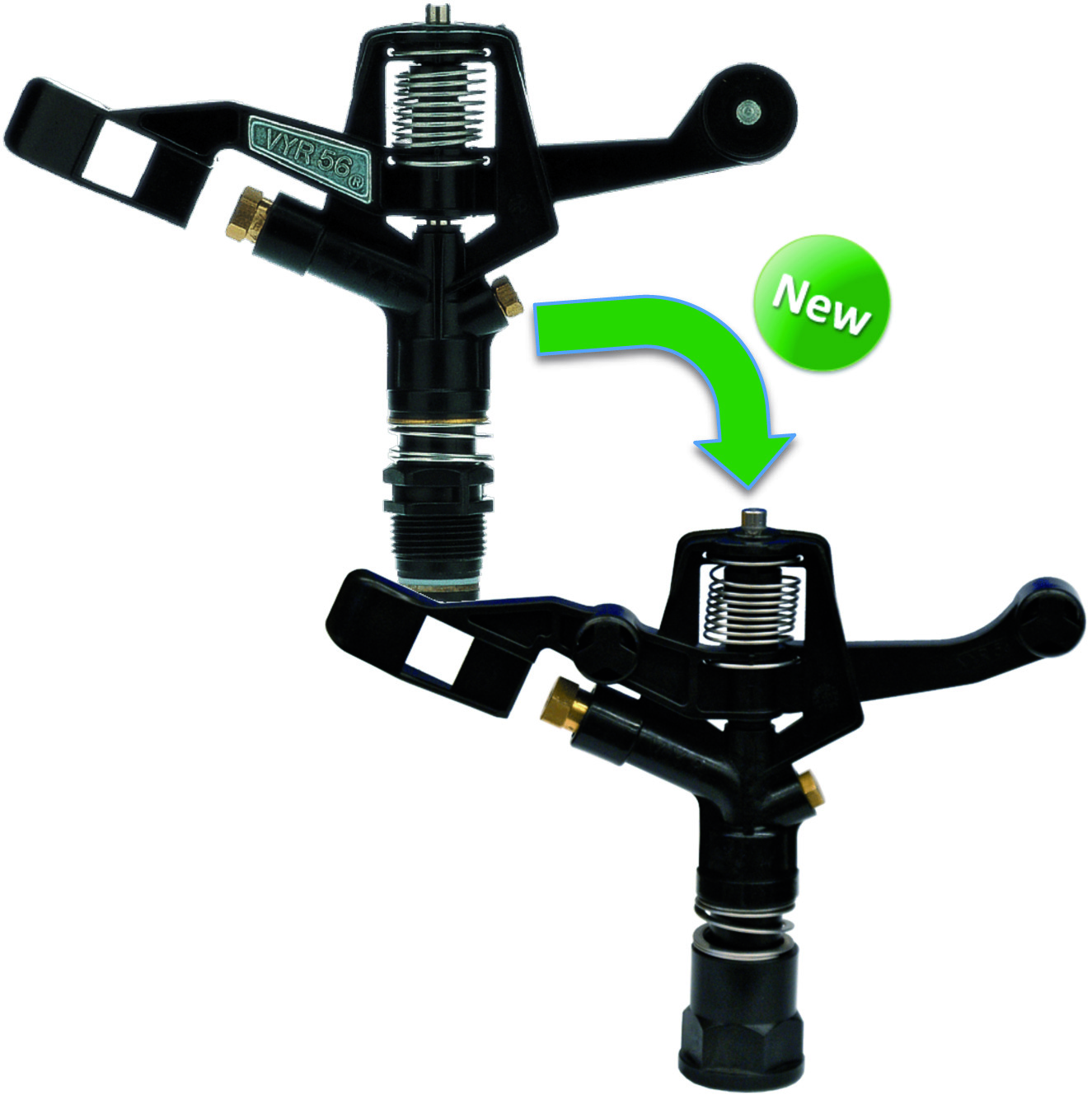

New re-design of VYR-56, the weights are inserted into the arm and the body design offers a lower pressure loss and larger range of coverage. The sprinkler VYR-56 is an agricultural circular sprinkler made of plastic. Has two references connection 3/4 "male and female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflón and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 620 and 3360 l / h, at pressures between 2.5 and 6 and BAR with a coverage range between 26 and 37 meters in diameter. The sprinkler VYR-56 can work with one or two nozzles; The main nozzle has 24 degrees of inclination from the horizontal plane and the secondary 27 º. Their average time of rotation comes to be approximately 40 sec. / 360 (3 BAR, 4.40 x2, 40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 9x9 meters to 18x18 meters rectangular frames and 8x8 feet to 16x16 feet to triangular frames.
The most common use given is for cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers.
Get more information from your nearest distributor
Contact us nowModels

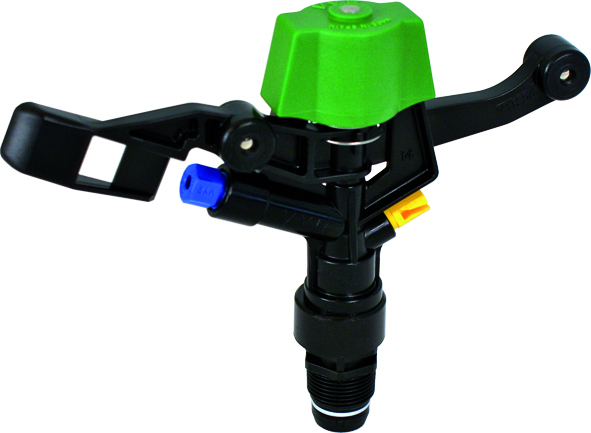

ASP VYR-56 PLASTICO ROSCA 3/4" M
- Weight: 188 gr.
- Units per box: 100
- Weight per box: 19 kg.
REDUCCION ROSCA 3/4"H-1"H

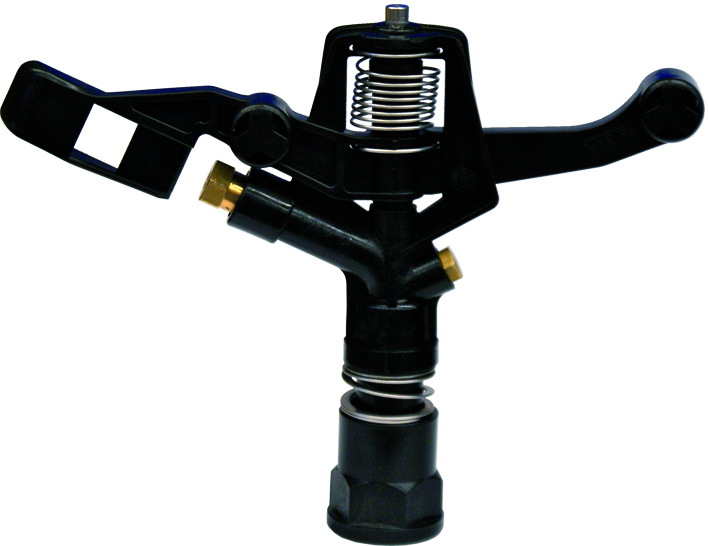

ASP VYR-56 PLASTICO ROSCA 3/4" H
- Weight: 188 gr.
- Units per box: 100
- Weight per box: 19 kg.
