VYR-50 S

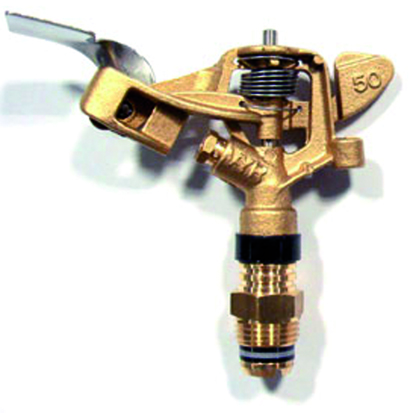

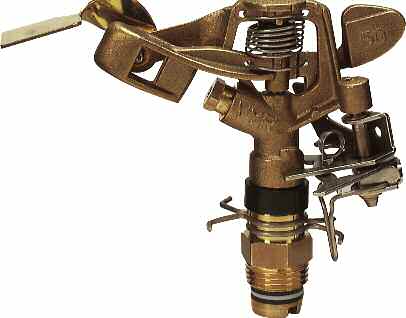

AG part-circle sprinkler VYR-50 S (Brass 1/2")

Riser-mounted impact sprinkler with 1/2” male connection for gardening, agricultura, floriculture and greenhouses. Made of brass and stainless steel with high-resistance rotating joints. Adjustable deflector plate and an irrigation area control system by adjustment of rotating clips.This sprinkler is strong and durable enough to work for years in urban gardens in punishing conditions, such as vandalism and impact from maintenance equipment.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-50 LATON CIRC. DEFLECTOR ROSCA 1/2

  • Weight: 458 gr.
  • Units per box: 100
  • Weight per box: 23 kg.

ASP VYR-50 LATON SECT. DEFLECTOR ROSCA 1/2

  • Weight: 266 gr.
  • Units per box: 50
  • Weight per box: 13 kg.

Specifications

Range distance: 9 - 14 m.
Flow: 240 - 1,440 l/h.
Working pressure: 1 - 4 bar.
Area: Full or part circle.
Nozzles: A single-jet nozzle.
Trajectory angles: 28º.
Maximum stream height: 2,2 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 10x10R, 12x12T, 12x13T meters.

Dimensions

  • Height: 12 cm.
  • Width: 13 cm.
  • Weight: 220 gr.
  • Units per box: 100
  • Weight per box: 22 kg.

Applications

  • Public and private gardens.
  • Horticultural plantations, floriculture and fruit trees.

Features

  • Riser-mounted impact sprinkler for gardening, agricultura, floriculture and greenhouses.
  • 1/2” male connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Adjustable deflector plate.
  • Irrigation area control system by adjustment of rotating clips.
  • Adjustable jet breaker diffuser pin.
  • This sprinkler is strong and durable enough to work for years in urban gardens in punishing conditions, such as vandalism and impact from maintenance equipment.

Options

  • Threads in BSP or NPT under demand.
  • Special design with a threaded shaft for fitting to the VYR-961 pop-up head.
  • Self-compensating flow control valves of 1.5 and 2 bar.
  • Assembled on “Agro-Stand“ with a 1.3 m galvanized Steel spike, microtube and connectors.
  • Assembled on a brass, aluminium or plastic spike.
  • Assembled on an aluminium round base.
