VYR-4000 ROTEC LA (plast. 1/2" M)

VYR-4000 ROTEC LA (plast. 1/2" M)

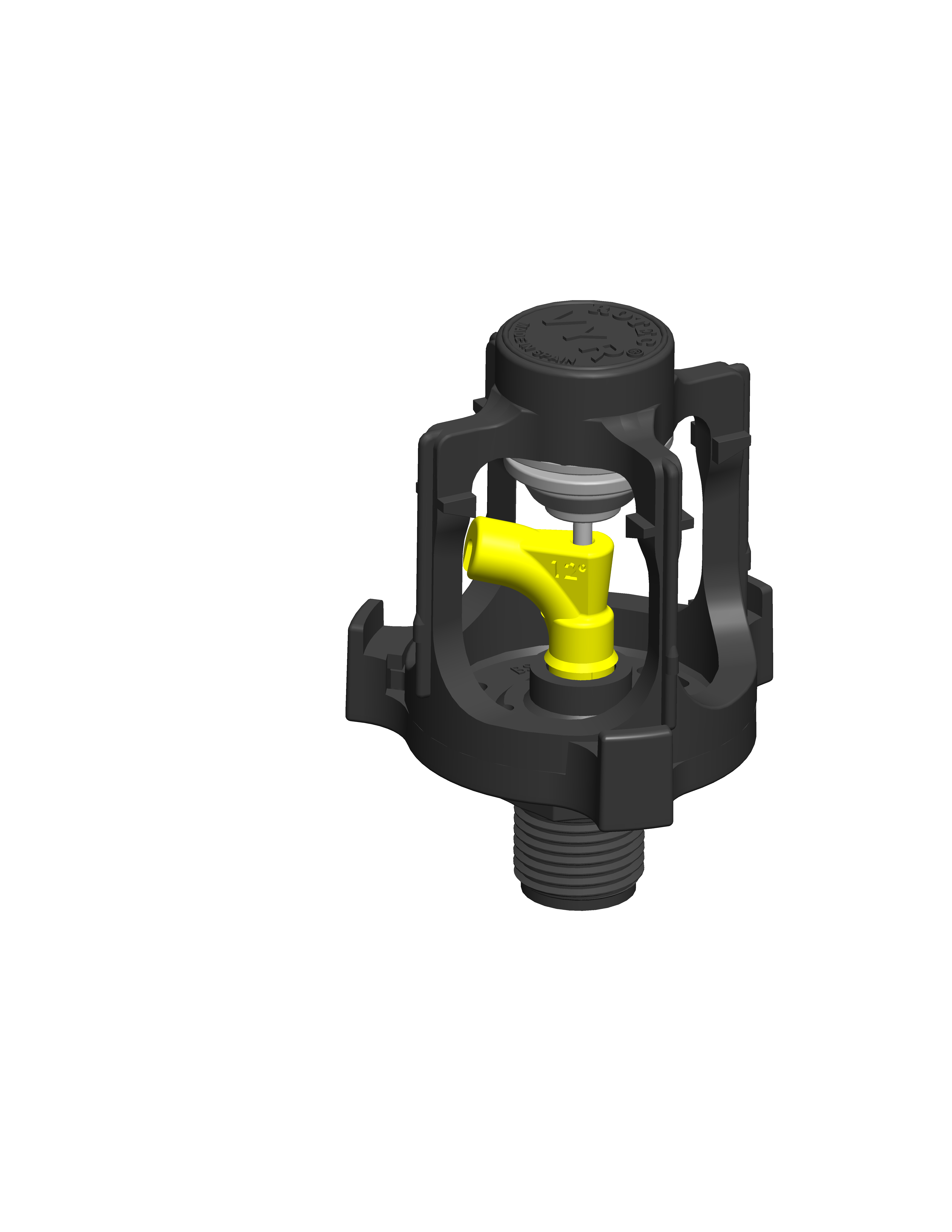

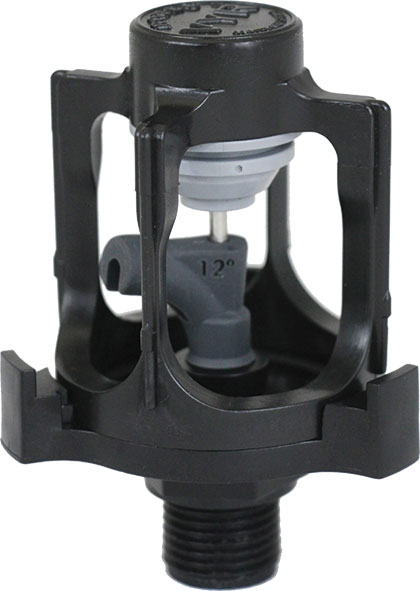

The model ROTEC VYR-4000 LA is a rotary sprinkler with silicone brake technology , inlet of 1/2" male and with a wide number of configurations depending on the different assembly options:
- MOTOR: 2 versions, the BLACK for a slow turn or for high pressures, and the GRAY for a faster turn or low pressures
- NOZZLES: Wide range with color code that define its diameter and flow rates.

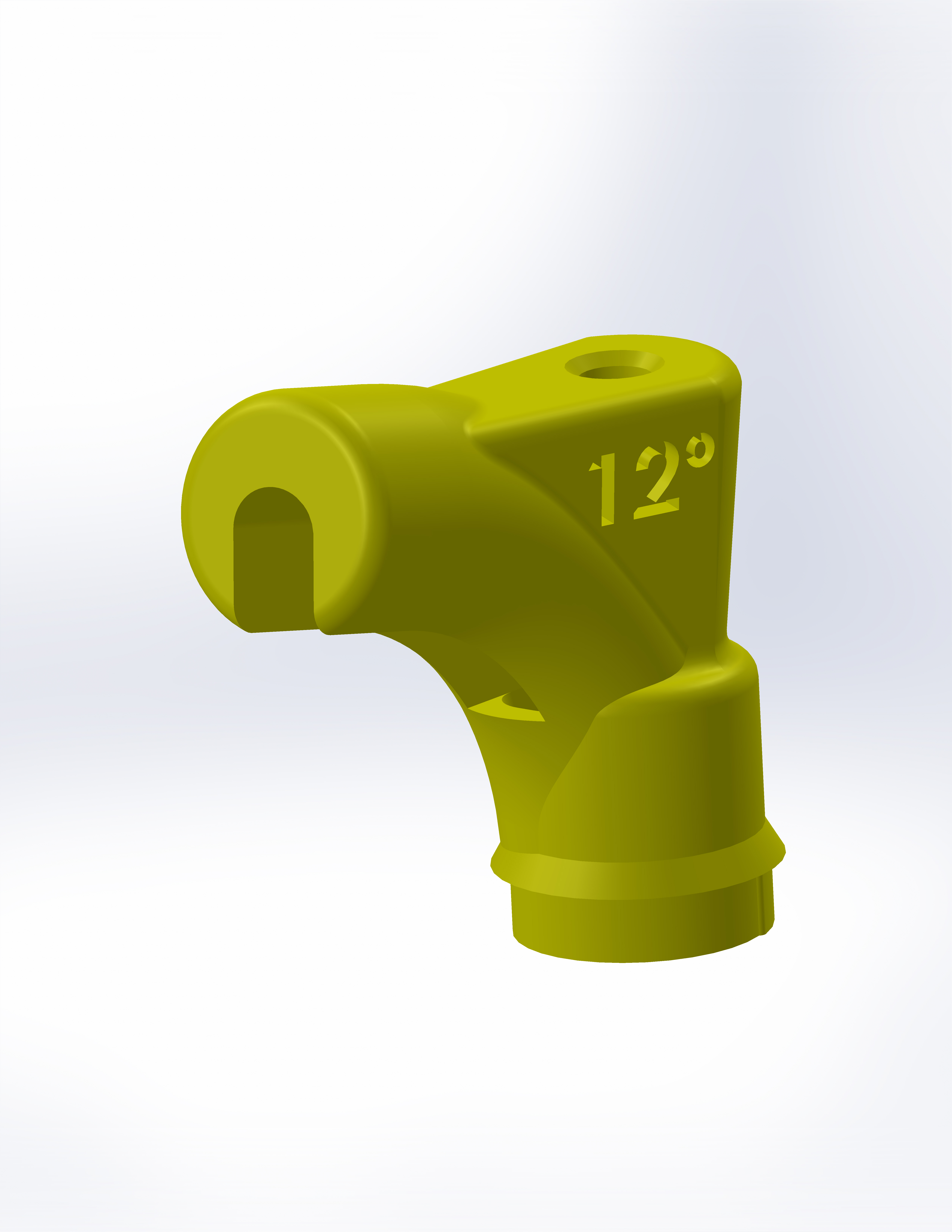

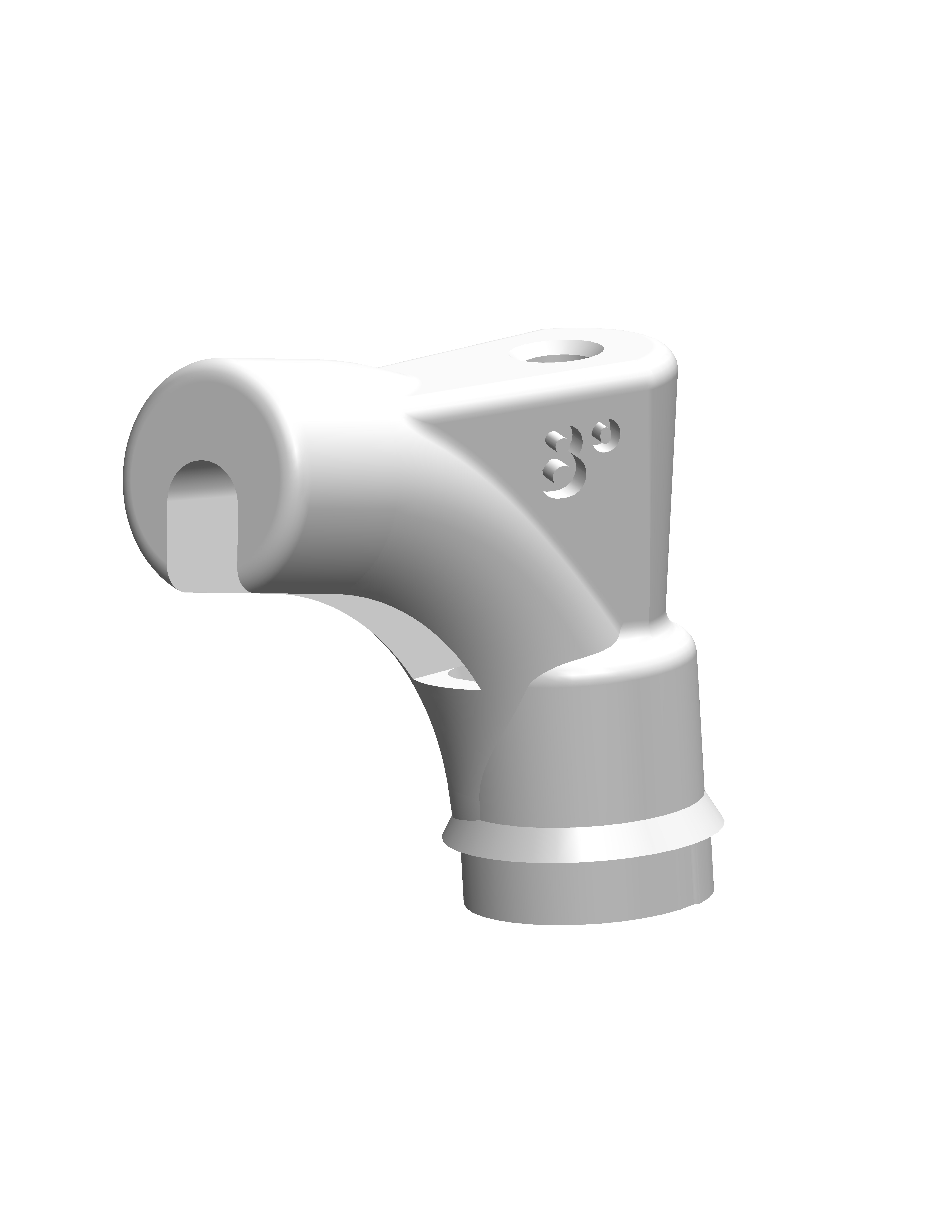

- PLATOS: 2 versions of 8º and 12º
This sprinkler is ideal for under-canopy (sub-arboreal) irrigation and the positioning of the 4 blades of the body can be oriented to the trunks of the trees to avoid the direct impact of the water jet against them.

Get more information from your nearest distributor

Contact us now

Models

VYR-4000 LA 8º - ROTEC 1/2" (BM)

  • Weight: 24 gr.
  • Units per box: 200
  • Weight per box: 5 Kg kg.

VYR-4000 LA 8º - ROTEC 1/2" (GM)

  • Weight: 24 gr.
  • Units per box: 200
  • Weight per box: 5 Kg kg.

Specifications

· Range: 7 - 9 m / 23 - 30 ft.
· Flow: 216 - 678 L/H / 57 - 179 GPH . Optional auto compensation!
· Working pressure: 1,2 - 3 BAR / 17 - 44 PSI.
· Nozzles: With codes of different colors depending on size/flow..
· Plate angle: 8º or 12º.
· Maximum jet height: 1,2 m / 4 ft.

Dimensions

No information available

Applications

  • · This low flow sprinkler is ideal for irrigation in areas with low pressure and flow. Its long-range design "wind cutter" makes the spacing between sprinklers can be up to 8 m.

Features

  • · Rotational 1/2 " Silicon Brake Sprinkler with male connection.
  • · Made of Delrin plastic.
  • · High strength rotating joints.
  • · Nozzles in codes of different colors.
  • · Irrigation bow: 360º
  • · Brake technology with silicone.

Options

  • · 2.5 BAR / 36 PSI self-compensating flow control valves.
  • · Mounted in "Agro-Stand" on plastic spike of 12 cm or on 1.3 m galvanized stake with microtube and connectors.
