VYR-35

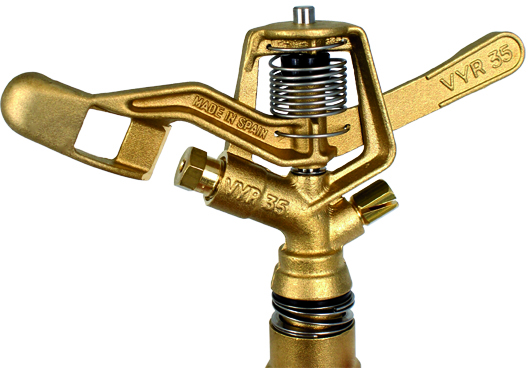

AG full-circle brass 3/4" sprinkler VYR-35

The sprinkler VYR-35 is the "flagship" of our catalog. It is an agricultural full circle sprinkler, made ​​of brass and with two connection references, 3/4" male or 3/4" female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflon and special polycarbonates to resist contact with the more aggressive fertilizers in market .
The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 660 and 3300 l/h, at pressures between 1.75 and 4.5 BAR and a cover range between 13 and 18 meters of diameter. The sprinkler VYR-35 can work with one or two nozzles, both nozzles are 26 degree angle to the horizontal plane. Their average time of rotation comes to be approximately 40 sec. / 360 (3 BAR, 4.40 x2, 40 mm).

Get more information from your nearest distributor

Contact us now

Models

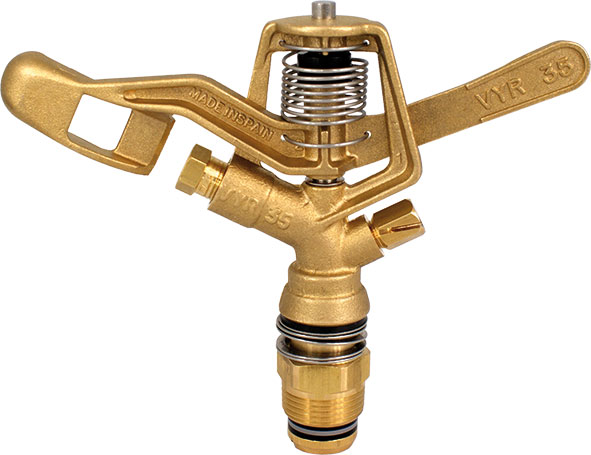

VYR-35 full-circle brass sprinkler 3/4" MALE w/2 nozzles

  • Weight: 420 gr.
  • Units per box: 50
  • Weight per box: 21 kg.

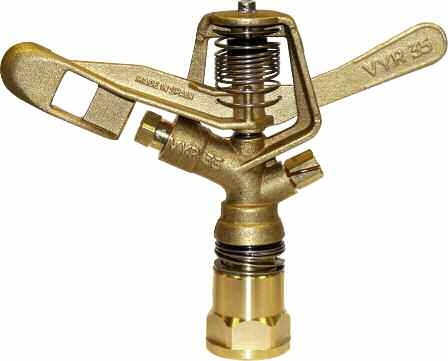

VYR-35 full-circle brass sprinkler 3/4" FEMALE w/2 nozzles

  • Weight: 420 gr.
  • Units per box: 50
  • Weight per box: 21 kg.

Specifications

Range distance: 13 - 18 m.
Flow: 660 - 3270 l/h.
Working pressure: 1.75 - 4.5 bar.
Area: Full circle.

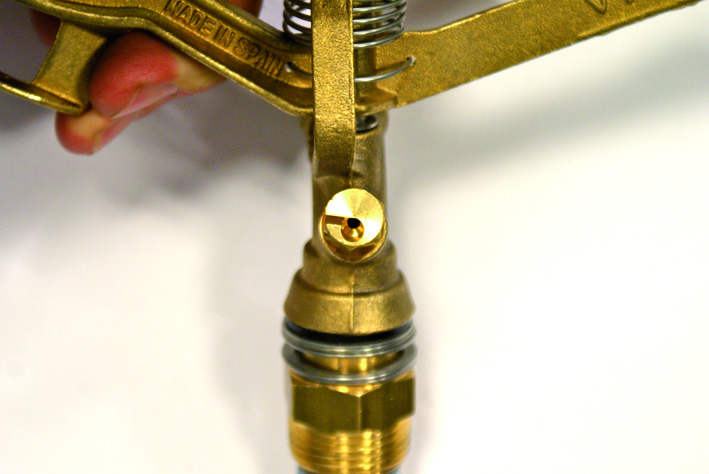

Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
Trajectory angles: 26º and 26º.
Maximum stream height: 2.4 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 18x18R, 15x18T, 18x18T.

Dimensions

  • Height: 14 cm.
  • Width: 17 cm.
  • Weight: 430 gr.
  • Units per box: 50
  • Weight per box: 22 kg.

Applications

  • This model is compatible with almost any type of crop and with a wide range of pluviometric and spacing conditions, suitable for a large number of different crop types.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Medium flow agricultural impact sprinkler.
  • 3/4" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 26º and 26º.
  • Designed for full coverage irrigation offering best compliance with spacing standards in the market.
  • Leading sprinkler in the agricultural market.

Options

  • Threads in BSP or NPT under demand.
  • Anti-frost cover with connection.
  • Brass or plastic nozzles, depending on the customer's technical specifications.
  • Secondary nozzle with deflector slot or plug.
  • Assembled on a pressure regulator for self-compensation of pressure and flow.
