VYR-33 ANTI-FROST

AG full-circle ANTI-FROST sprinkler VYR-33 (Brass 3/4")

The sprinkler VYR-33 is an agricultural circulate model ANTI-FROST. Made ​​of brass  and with a connection 3/4 male or female.
Its axis and springs are made of stainless steel and O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
With a cap to protect the spring, guaranteeing a perfect sprinkler running despite frost periods.

Get more information from your nearest distributor

Contact us now

Models

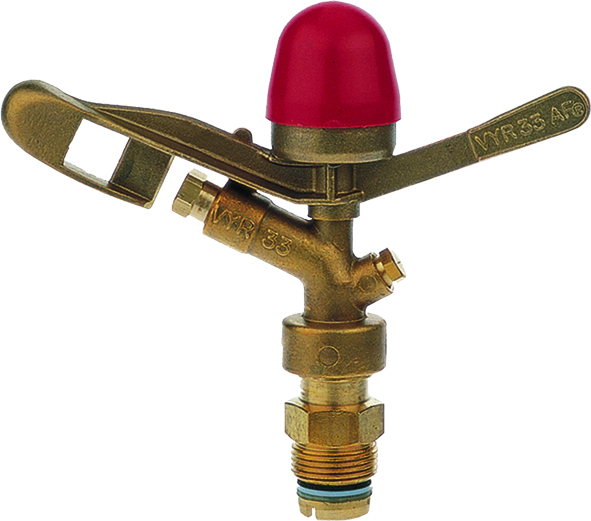

ASP VYR-33 ROSCA 3/4" MACHO

  • Weight: 490 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

ASP VYR-33 ROSCA 3/4" HEMBRA

  • Weight: 490 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

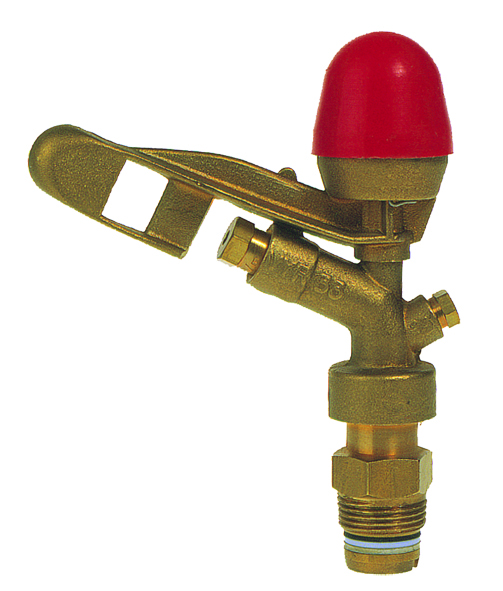

ASP VYR-33 PL ROSCA 3/4" MACHO

  • Weight: 490 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

ASP VYR-33 PL ROSCA 3/4" HEMBRA

  • Weight: 490 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

Specifications

Range distance: 10 - 13.50 m.
Flow: 900 - 2920 l/h.
Working pressure: 2.5 - 6.5 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
Trajectory angles: 25º and 30º.
Maximum stream height: 3.7 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 17x17R, 18x18T, 19x17T meters.

Dimensions

  • Height: 15 cm.
  • Width: 17 cm.
  • Weight: 490 gr.
  • Units per box: 50
  • Weight per box: 25 kg.

Applications

  • Horticultural plantations, cereals, tubers, legumes, and fruit.

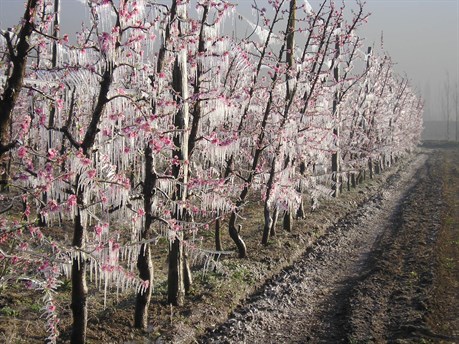

  • Designed to work in ANTI-FROST conditions.

Features

  • Medium flow agricultural impact sprinkler.
  • ANTI-FROST protection cover.
  • 3/4” male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 25º and 30º.
  • Special design for ANTI-FROST irrigation using materials resistant to extreme conditions.

Options

  • Threads in BSP or NPT under demand.
  • Models with short arm with male or female connection.
  • Brass or plastic nozzles, depending on the customer's technical specifications.
  • Secondary nozzle with deflector slot or plug.
  • Assembled on a pressure regulator for self-compensation of pressure and flow.
