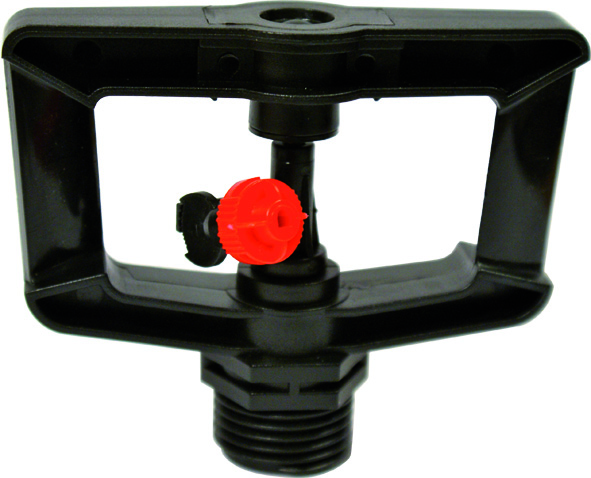

VYR-3100 ROTATIVE SPRINKLER

VYR-3100 ROTATIVE SPRINKLER (Plast. 1/2")

The sprinkler VYR-3100 is a "ROTATIVE" sprinkler type for low-flow irrigation.This model is a full circle sprinkler and has a regulatory angle projection system that can vary between -8  ° and  25 °.  Its design and  versatility offers  a perfect fit for irrigation of greenhouses, under-tree irrigation and even industrial applications.

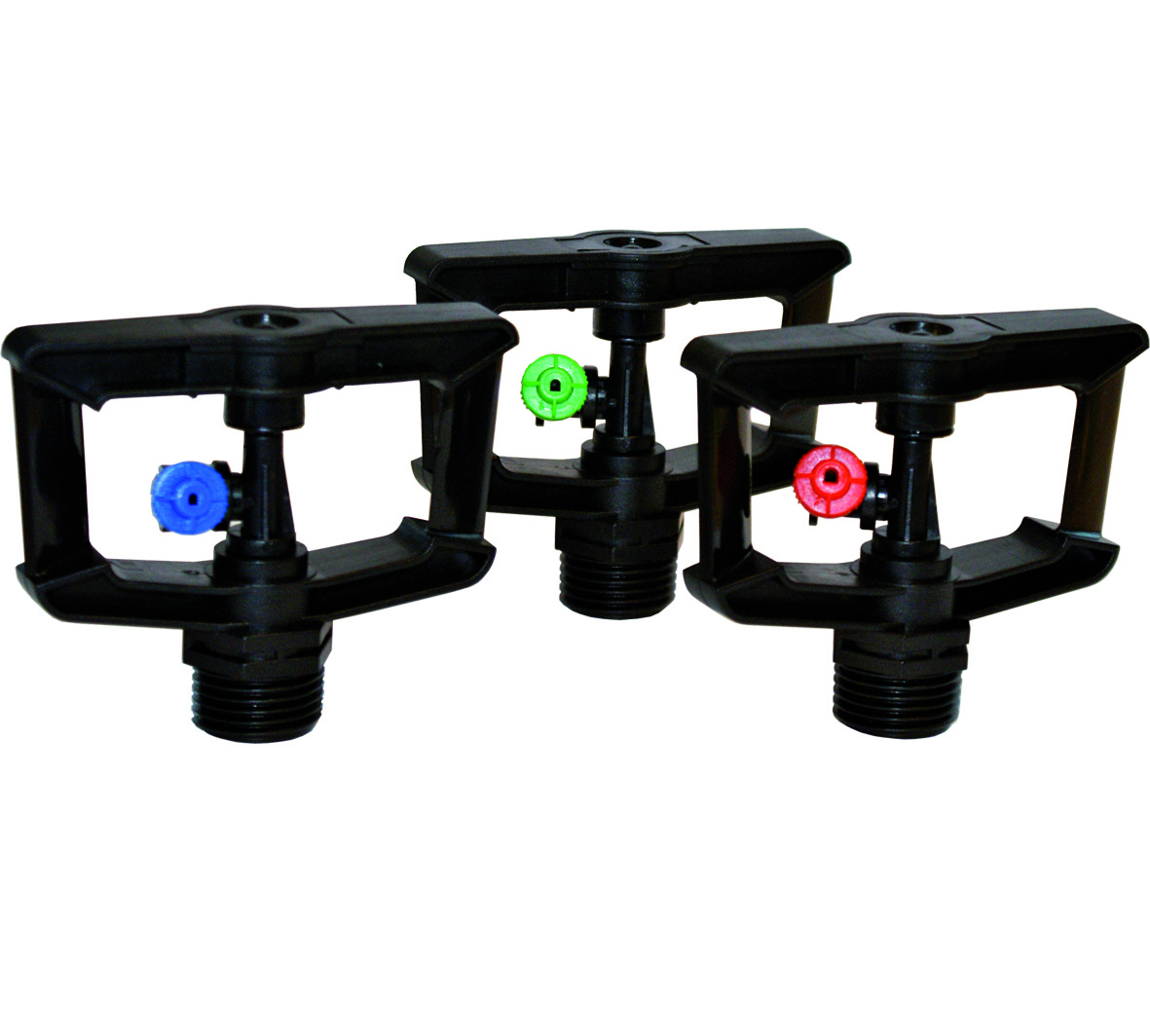

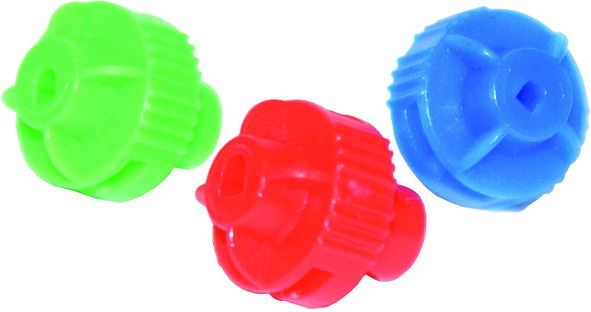

The  VYR-3100  has 4  bayonet  nozzles  easily differentiate by its  color code.
The  constant speed  system  operated by a  brake on a shaft  inserted into a  cavity filled with  silicone.  The rotational speed  will vary depending on  operating pressure, although the average  is 45  sec /  rev.

Get more information from your nearest distributor

Contact us now

Models

Low Flow 1/2" Silicon Rotator

  • Weight: 42 gr.
  • Units per box: 300
  • Weight per box: 12,6 kg.

Specifications

Range distance: 0,4 - 8,5 m (1,3-28 ft.).
Flow: 0,6 - 1,3 GPM (130 - 290 L/h). Auto-compensated OPTIONAL!
Working pressure: 17 - 44 PSI (1,2 - 4 BAR).
Nozzle: Colour-coded from -8º to +25º. ADJUSTABLE!
Maximun height of waterjet: 2,7 m (9 ft).

Dimensions

  • Height: 6,5 cm.
  • Width: 8 cm.
  • Weight: 24 gr.
  • Units per box: 200
  • Weight per box: 5 kg.

Applications

  • This low-flow rotator sprinkler is suitable for irrigation in areas with low pressure and flow. Its long range “windfighter“ design means that the spacing between sprinklers can be up to 8 m (28 ft).

Features

  • Low flow rotational sprinkler, with silicom technology.
  • Color coded bayonet nozzle with adjustable jet angle from -8º to +25º.
  • Riser-mounted 1/2” male connection.
  • Made of Delrin plastic.
  • High-resistance rotating joints.
  • Colour-coded bayonet nozzles.
  • Arc: 360o.
  • Silicon brake technology.

Options

  • Threads in BSP or NPT under demand.
  • Self-compensating flow control valves of 29 - 73 PSI (2-5 BAR).
  • Assembled on a “AGRO-STAND kit“ on a 1.3 m galvanized stake with microtube and connectors.
