VYR-28

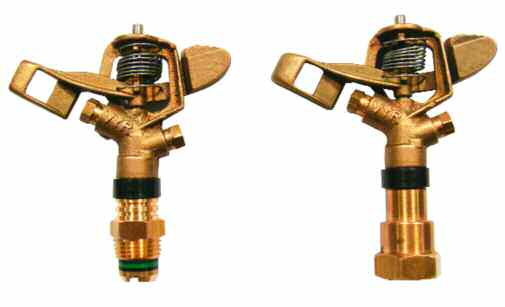

AG full-circle sprinkler VYR-28 (Brass 1/2")

Low flow agricultural impact sprinkler made of brass and stainless steel with a 1/2“ male or female connection. Double nozzle of 18º and 10º.

Get more information from your nearest distributor

Contact us now

Models

VYR 28 - ROSCA 1/2 M 18º Y 10º

  • Weight: 194 gr.
  • Units per box: 100
  • Weight per box: 20 kg.

Specifications

Range distance: 12 - 15 m.
Flow: 660 - 3270 l/h.
Working pressure: 1.7 - 4.5 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle.
Trajectory angles: 18º and 10º.
Maximum stream height: 1.7 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 11x11R, 12x12T, 13x11T meters.

Dimensions

  • Height: 10,5 cm.
  • Width: 10 cm.
  • Weight: 194 gr.
  • Units per box: 100
  • Weight per box: 19,5 kg.

Applications

  • Low flow and vegetable crops.

Features

  • Low flow agricultural impact sprinkler.
  • 1/2“ male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angle of 18º and 10º.
  • Rotating coupling with protective cover.

Options

  • Threads in BSP or NPT under demand.
  • Self-compensating flow control valves of 2.5 BAR.
  • Assembled on “Agro-Stand“ with a 1.3 m galvanized steel spike, micro-tube and connectors.
