VYR-23 ANTI-FROST

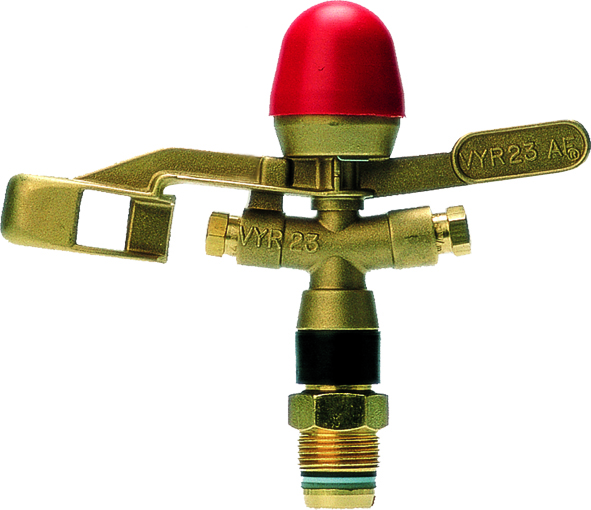

AG full-circle ANTI-FROST sprinkler VYR-23 LA (Brass 3/4")

The sprinkler VYR-23 is an ANTI-FREEZE circular low angle model. Made ​​of brass  and with a connection 3/4 male or female.
Its axis and springs are made of stainless steel and O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
With a cap to protect the spring, guaranteeing a perfect sprinkler running despite frost periods.
The wide range of brass or plastic nozzles offer multiple combinations. This sprinkler is designed to work under a flow range between 600 and 3270 l / h, at pressures between 1.7 and 4.5 bar and with a coverage range between 10 and 13.5 meters away. The sprinkler VYR-23 can work with one or two nozzles; The main nozzle is 7 degrees of inclination to the horizontal plane and the secondary 7 degrees. Their average time of rotation comes to be approximately 40 sec. / 360 (3 BAR, 4.40 x2, 40 mm).

Get more information from your nearest distributor

Contact us now

Models

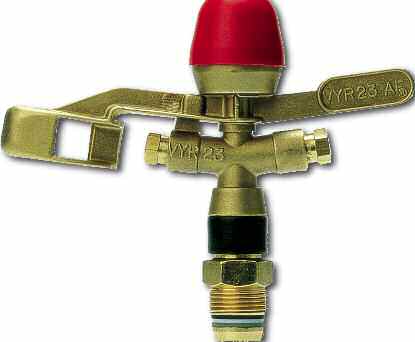

ASP VYR-23 ROSCA 3/4" HEMBRA

  • Weight: 460 gr.
  • Units per box: 50
  • Weight per box: 23 kg.

ASP VYR-23 ROSCA 3/4" MACHO

  • Weight: 450 gr.
  • Units per box: 50
  • Weight per box: 23 kg.

Specifications

Range distance: 10 - 13.50 m.
Flow: 660 - 3270 l/h.
Working pressure: 1.7 - 4.5 bar.
Area: Full circle.
Nozzles: Two nozzles.
Trajectory angles: 7º and 7º.
Maximum stream height: 1,2 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.

Dimensions

  • Height: 15 cm.
  • Width: 16 cm.
  • Weight: 450 gr.
  • Units per box: 50
  • Weight per box: 23 kg.

Applications

  • Horticultural plantations, cereals, tubers, legumes, and fruit. Designed to work in low-angle pair on Pivots in areas with high winds and under ANTI-FROST conditions.

Features

  • Medium flow and low angle agricultural impact sprinkler.
  • ANTI-FROST protection cover with UV sun protector.
  • 3/4” male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 7º and 7º.
  • Specially designed to achieve greater reach with Pivots and in windy areas.

Options

  • Threads in BSP or NPT under demand.
  • Brass or plastic nozzles, depending on the customer's technical specifications.
  • Secondary nozzle similar to the main nozzle.
  • Assembled on a pressure regulator for self-compensation of pressure and flow in Pivots and sprinkler lines.
