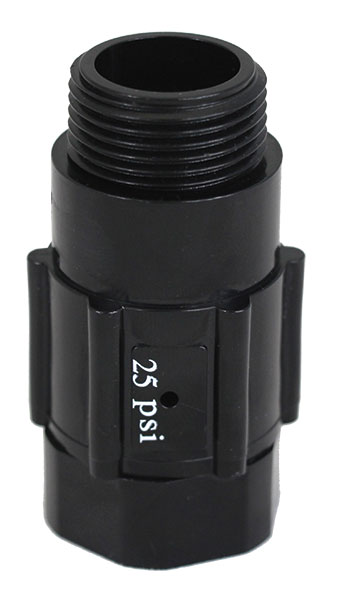

VYR-19 Low-Flow

Low Flow Pressure Regulator

· Pressure regulators VYR-19 MPR for agricultural and landscape use.
· Made of nylon 6.6, polypropylene, rubber and stainless steel.
· The design, with cross-sectional and longitudinal reinforcements, makes this range of pressure regulators one of most resistant on the market against high pressures and water hammer.
· BSP thread 3/4” H x (1/2” H- 3/4” M), and 1/2” x (1/2” H- 3/4” M)
· Stainless steel spring, high quality with continuous and uniform strength.
· Flow of 0,2 to 2,5 m3/h ( 0,9 - 11 GPM).
· Maximum working pressure 10 BAR (150 PSI).

Get more information from your nearest distributor

Contact us now

Models

VYR-19 LF (25 PSI - 1,75 BAR)

  • Weight: 40 gr.
  • Units per box: 100
  • Weight per box: 4 kg.

VYR-19 LF (30 PSI - 2,1 BAR)

  • Weight: 40 gr.
  • Units per box: 100
  • Weight per box: 4 kg.

VYR-19 LF (45 PSI - 3,1 BAR)

  • Weight: 40 gr.
  • Units per box: 100
  • Weight per box: 4 kg.

Specifications

· Pressure regulators VYR-19 MPR for agricultural and landscape use.
· Made of nylon 6.6, polypropylene, rubber and stainless steel.
· The design, with cross-sectional and longitudinal reinforcements, makes this range of pressure regulators one of most resistant on the market against high pressures and water hammer.
· BSP thread 3/4” H x (1/2” H- 3/4” M), and 1/2” x (1/2” H- 3/4” M)
· Stainless steel spring, high quality with continuous and uniform strength.
· Flow of 0,2 to 2,5 m3/h ( 0,9 - 11 GPM).
· Maximum working pressure 10 BAR (150 PSI).

Dimensions

  • Height: 7 cm cm.
  • Width: 3,5 cm cm.
  • Weight: 40 grs gr.
  • Units per box: 100
  • Weight per box: 4 kg.

Applications

No information available

Features

  • · Pressure regulators VYR-19 MPR for agricultural and landscape use.
  • · Made of nylon 6.6, polypropylene, rubber and stainless steel.
  • · The design, with cross-sectional and longitudinal reinforcements, makes this range of pressure regulators one of most resistant on the market against high pressures and water hammer.
  • · BSP thread 3/4” H x (1/2” H- 3/4” M), and 1/2” x (1/2” H- 3/4” M)
  • · Stainless steel spring, high quality with continuous and uniform strength.
  • · Flow of 0,2 to 2,5 m3/h ( 0,9 - 11 GPM).
  • · Maximum working pressure 10 BAR (150 PSI).
