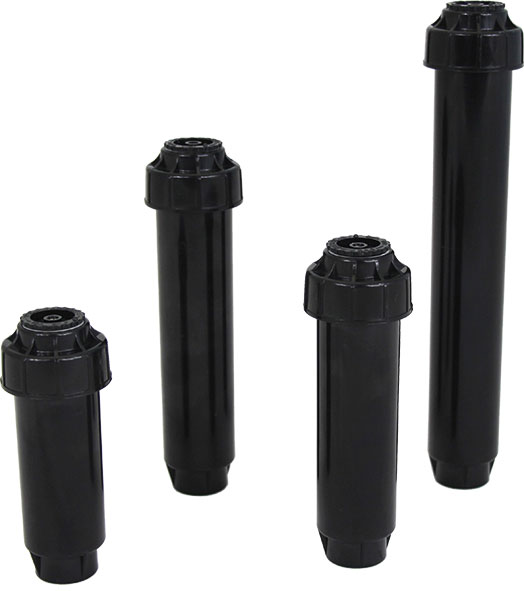

VYR-181

Compact Sprayers

GENERAL PROPERTIES:
· Pop-up spray sprinklers for residential and urban use.
· 1/2” female connection. · Made of Delrin plastic.
· Stainless steel spring with continuous tension.
· Anti-sand rubber seal.
· Removable grit filter for maintenance cleaning.
· Check valve for 6 m of water colunm retain (optional).
TECHNICAL SPECIFICATIONS:
· Reach: 3 - 5.5 m / 98, - 18 ft
· Flow: 240 - 1200 l/h (depending on nozzle type).
· Working pressure: 1 - 4 BAR / 14 - 58 PSI
· Area: Full or part circle.
· Nozzles: Four nozzles of 360º, 180º, 90º and adjustable 0º - 360º
· Trajectory angles: 30º
· Maximum spray height: 1.2 m / 3,9 ft
· Flow regulation: From total closure up to 15 VAN
· Uniformity coefficient higher than 90% in areas of 4x4R, 5x5T, 6x6T m / 13x13R, 16x16T, 20x20T ft.
APPLICATIONS:
· Ideal for residential, urban and commercial green areas.
· Used in both garden and greenhouse irrigation.
· Small green spaces, areas with shrubs and low trees.
MEASUREMENTS:
· Height: 10-23 cm / 4 - 9 in
· Width: 4 cm / 1,6 in

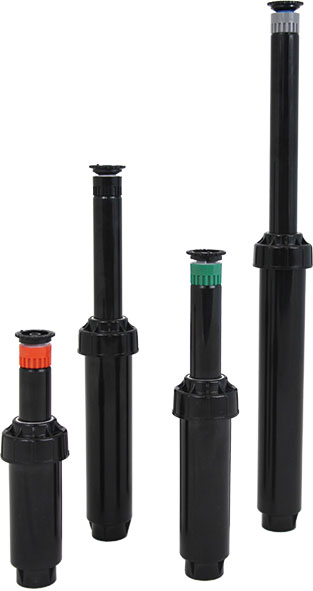

· Pop-up: 7-15 cm / 2- 6 in
· Weight: 90-120 g / 0,2 - 0,26 Lbs
· Units per box: 100

Models
