VYR-166

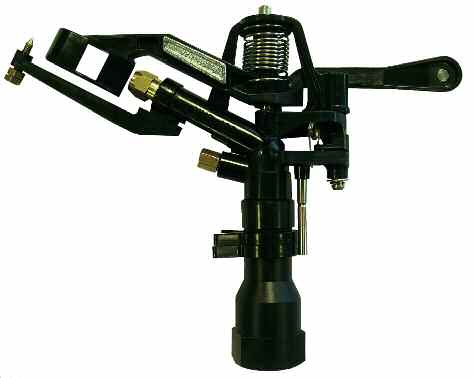

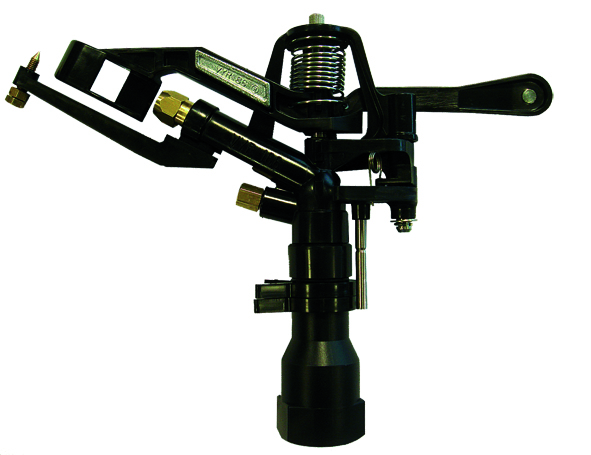

AG Part-circle sprinkler VYR 166 (plast. 1")

The VYR-166 is a medium-high flow part-cirlcle agricultural impact sprinkler. The connection is 1 "female and is made of plastic and stainless steel with high resistance rotation joints.
The angles of the nozzles are 28º for the main gunship (long radius) and 14º for the secondary gunship (short radius). The sectorial mechanical system using omegas is very easy and quick to adjust.
The VYR-65 is used in coverage irrigations with medium-high flow rates to cover the cover frames of the sides and corners.
Its great mechanical and hydraulic design provides a very important energy saving and an optimum coverage coefficient in its distribution.

Get more information from your nearest distributor

Contact us now

Models

Conjunto tornillo difusor para ASP VYR-166

ASP VYR-166 S/D plástico rosca 1" H

  • Weight: 1420 gr.
  • Units per box: 15
  • Weight per box: 21 kg.

ASP VYR-166 C/D plástico rosca 1" H

  • Weight: 1280 gr.
  • Units per box: 15
  • Weight per box: 20 kg.

Specifications

Reach: 16 - 24 m.
Flow: 2240 - 7,840 l/h.
Working pressure: 3.5 - 6 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 28º and 14º.
Maximum stream height: 3 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 24x24R, 25x25T, 25x26T.

Dimensions

  • Height: 24 cm.
  • Width: 25 cm.
  • Weight: 380 gr.
  • Units per box: 15
  • Weight per box: 6 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle agricultural impact sprinkler, medium-high flow.
  • 1" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 28º and 14º.
  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with medium-high flow to cover the side and corner areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Rod with jet breaker diffuser pin for the main nozzle.
  • Foldable tripod for mobile installation.
