VYR-16

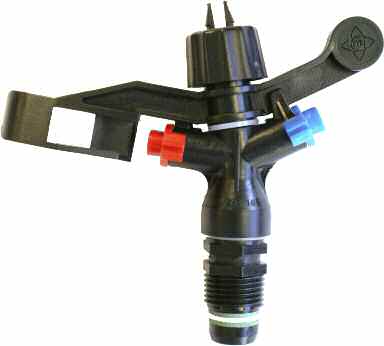

AG full-circle sprinkler VYR-16 (Plast. 1/2")

The sprinkler VYR-16 is a low flow sprayer with a special design to operate at different angles and under extreme temperature conditions. This is a male rotor  1/2" circular farm, made ​​of plastic and has two references depending on the angle of mounting. Its axis and springs are made of stainless steel and O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
The wide range of plastic nozzles, with different colors for easy differentiation, offer a number of possible combinations. This sprinkler is designed to work under some flow ranges between 168 and 1450  l /  h, at pressures between 1 and 3.5 bar, with a coverage range between 21 and  24 meters  in diameter. The sprinkler VYR-16 can work with one or two nozzles; The main nozzle has 26° inclination to the horizontal plane and the secondary  8º. Its average rotation time comes to be approximately 40 sec.  / 360 (2 BAR, 4.40  x2, 40 mm).
For optimum uniformity coefficient our technicians recommend using it with a spacing between sprinkler  heads  and lines of  5x5  meters to  10x10  meters  rectangular frames,  4x4  and  9x9  feet to  meters triangular  frames.
The most common use is for grains such as wheat, barley or corn, alfalfa, beets,  leafy robust, legumes and tubers.

Get more information from your nearest distributor

Contact us now

Models

VYR-16 full-circle plastic sprinkler 1/2" MALE w/2 nozzles

  • Weight: 52 gr.
  • Units per box: 250
  • Weight per box: 15 kg.

VYR-35 full-circle plastic sprinkler 1/2" MALE w/2 nozzles LOW ANGLE

  • Weight: 52 gr.
  • Units per box: 250
  • Weight per box: 15 kg.

Specifications

Range distance: 10 - 12 m.
Flow: 168 - 1450 l/h.
Working pressure: 1.5 - 3.5 bar.
Area: Full circle.
Nozzles: Two nozzles, one long range (2 - 3.6 mm) and one short range (2.5 - 3 mm) (2.4 x 2.5 mm standard).
Colour-coded “click“ bayonet nozzles.
Trajectory angles: 26o and 8o.
Maximun height of waterjet: 2.8 m and 1 m (low angle).
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous (adjustable).
Uniformity coefficient higher than 90% in areas of 8x8R, 8x10T.

Dimensions

  • Height: 11 cm.
  • Width: 13 cm.
  • Weight: 52 gr.
  • Units per box: 300
  • Weight per box: 15 kg.

Applications

  • Low flow plantations such as cotton. Ideal, given its low angle, for the irrigation of banana trees and other similar fruit trees.

Features

  • Riser-mounted low flow sprinkler.
  • 1/2” male connection.
  • Made of plastic and stainless steel.
  • High-resistance rotating joints.
  • Adjustable spring tension system to vary the rotation speed depending on the pressure.
  • Variable multifunction arm so the same sprinkler can be used as a medium angle model (26º main and 8º secondary), or as a low angle model (8º main and 26º secondary).

Options

  • Threads in BSP or NPT under demand.
  • Standard or low angle assembly, as requested in the order.
  • Self-compensating flow control valves of 2-5 BAR.
  • Assembled as a “Agro-Stand“ on a 1.3 m galvanized stake with microtube and connectors.
