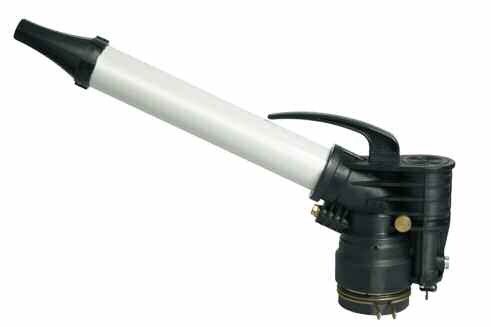

VYR-157 S

Large coverage piston drive sprinkler gun 2 1/2"

The sprinkler-gun model VYR-157 has the latest technology for long distance and high flow irrigation. Its system of rotation by hydraulic piston makes it a model of precision and strength.
Made with high quality materials used ingenious operating systems with hydraulic incredible results: the result is highly functional, versatile and long-period dependent operation with minimum maintenance.
Even under the most extreme working conditions this rotor ensures high performance of work over a long period of life and without the slightest inconvenience with proper maintenance.

Get more information from your nearest distributor

Contact us now

Models

VYR-157 S CAÑÓN DE RIEGO DE 2 1/2"

  • Weight: 4000 gr.
  • Units per box: 1
  • Weight per box: 4,3 kg.

Specifications

Reach: 24-42 m (2").
Flow: 10,250 - 25,000 l/h (2").
Working pressure: 5 - 8 bar.
Area: Part or full circle.
Nozzles: One main multi-jet nozzle for long reach and a secondary nozzle for short reach.
Trajectory angles: 28º.
Maximum stream height: 5.5 m.
Rotation time: Adjustable by a side control command screw.
Uniformity coefficient higher than 90% in areas of 35x35R, 40x40T, 40x45T (2").

Dimensions

  • Height: 30 cm.
  • Width: 45 cm.
  • Weight: 4000 gr.
  • Units per box: 1
  • Weight per box: 4 kg.

Applications

  • DUST SUPPRESSION
  • Irrigation for sport fields.
  • Roller traveller sprinkler irrigation.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Piston drive raingun sprinkler, high flow.
  • 2 1/2"  female connection.
  • Made of aluminium, brass, plastic and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 28º and 28º.
  • Special design for long reach.
  • Used in full coverage irrigation with very high flow.
  • Rotation speed adjustment.

Options

  • Automatic kit with 2" or 3" valve, hydraulically or electrically driven.
  • Foldable tripod for mobile installation.
  • Complete set of nozzles.
