VYR-157-L

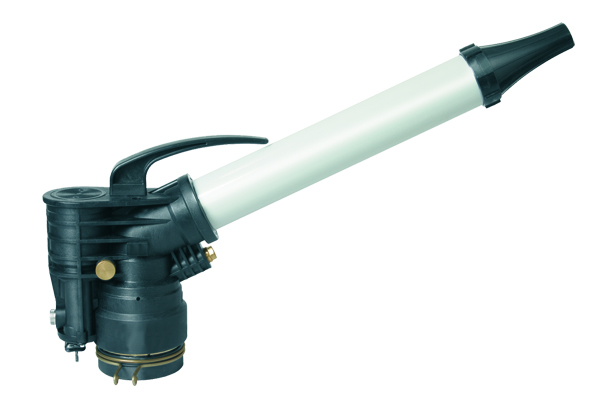

Large coverage piston drive sprinkler gun 3"

The sprinkler-gun model VYR-157, has the latest technology as far as long distance and high flow irrigation is concerned. Its system of rotation by hydraulic piston makes this a model of precision and strength.
Made with high quality materials used ingenious operating systems with hydraulic incredible results: the result is highly functional, versatile and long-period dependent operation with minimum maintenance.
Even under the most extreme working conditions this rotor ensures high performance of work over a long period of life and without the slightest inconvenience if proper maintenance has been correct.

Get more information from your nearest distributor

Contact us now

Models

VYR-157 CAÑÓN DE RIEGO DE 3"

  • Weight: 7500 gr.
  • Units per box: 1
  • Weight per box: 7 kg.

Specifications

Reach: 24-42 m (2") and 39 - 65 m(3").
Flow: 10,250 - 25,000 l/h (2") and 24,250 - 121,250 l/h (3").
Working pressure: 5 - 8 bar.
Area: Part or full circle.
Nozzles: One main multi-jet nozzle for long reach and a secondary nozzle for short reach.
Trajectory angles: 28º.
Maximum stream height: 5.5 m.
Rotation time: Adjustable by a side control command screw.
Uniformity coefficient higher than 90% in areas of 55x55R, 60x60T, 60x65T meters.

Dimensions

  • Height: 50 cm.
  • Width: 80 cm.
  • Weight: 7500 gr.
  • Units per box: 1
  • Weight per box: 7,5 kg.

Applications

  • DUST SUPPRESSION
  • Irrigation for sport fields.
  • Roller traveller sprinkler irrigation.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Piston drive rain-gun sprinkler, high flow.
  • 3" female connection.
  • Made of aluminium, brass, plastic and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 28º and 28º.
  • Special design for long reach.
  • Used in full coverage irrigation with very high flow.
  • Rotation speed adjustment.

Options

  • Automatic kit with 2" or 3" valve, hydraulically or electrically driven.
  • Foldable tripod for mobile installation.

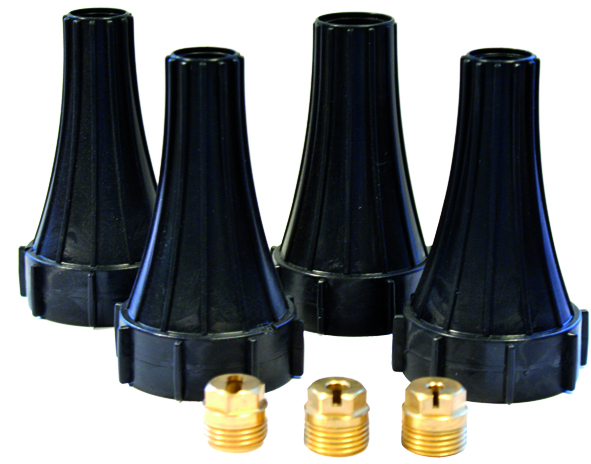

  • Complete set of nozzles.
