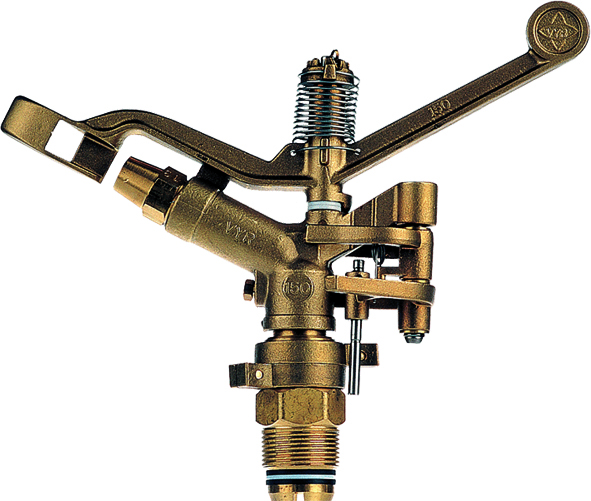

VYR-150

AG Brass-circle sprinkler (Brass 1 1/4")

The sprinkler VYR-150 is a part-circle agricultural sprinkler, made of brass with  1 1/4" male connection. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
The wide range of brass mouthpieces offer a number of possible combinations among nozzles. This sprinkler is designed to work under some flow ranges between 6200 and 28000 l / h, at pressures between 4 and 8 BAR and cover a range of between 50 and 75 meters in diameter. The main nozzle is 27° degree angle to the horizontal plane and the secondary 4 °. Their average time of rotation comes to be approximately 30 sec./rot (3 BAR, 4.40x2,40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 18x18 meters to 38x38 meters rectangular frames, and 18x18 meters to 42x42 meters triangular frames.
The most common use given is irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers. It is widely used as a spray tip PIVOT

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-150 LATON ROSCA 1 1/4"

  • Weight: 2430 gr.
  • Units per box: 5
  • Weight per box: 13 kg.

Specifications

Reach: 25 - 37 m.
Flow: 6,200 - 28,000 l/h.
Working pressure: 4 - 7 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 27º and 4º.
Maximum stream height: 3,8 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 37x37R, 37x37T, 37x39T meters.

Dimensions

  • Height: 30 cm.
  • Width: 36 cm.
  • Weight: 2430 gr.
  • Units per box: 5
  • Weight per box: 13 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.
  • Often used for Pivot points.

Features

  • Part circle agricultural impact sprinkler, high flow.
  • 1 1/4" male connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 27º and 4º.
  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with high flow to cover the side, corner and pivot point areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.
  • Adjustable spring tension.

Options

  • Threads in BSP or NPT under demand.
  • Foldable tripod for mobile installation.
