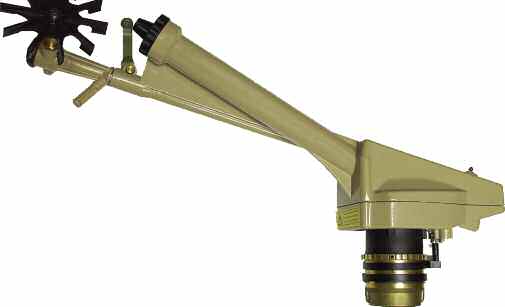

VYR-100 GRILLO

Turbine large coverage gun 2"

This model Sprinkler-Gun VYR-100 GRILLO made with high quality materials used ingenious operating systems with great hydraulic results. Highly functional, versatile and long-period dependent operation with minimum maintenance.
Even under the most extreme working conditions this rotor ensures high performance of work over a long period of life and without the slightest inconvenience.
The sprinkler VYR-100 "GRILLO" agricultural sector is a model made of aluminum, plastic and brass. Its sophisticated engranages are made of stainless steel, fiberglass plastic and O-rings and sealing washers high steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.

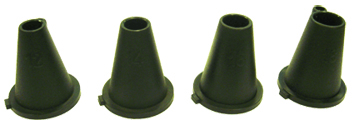

This sprinkler-gun contains 4 plastic nozzles 10, 12, 14 and 16 mm. The GRILLO VYR-100 is designed to work under flow ranges between 8500 and 27000 l / h at a pressure range of 2.5 to 4.5 BAR and a range of between 25 and 38 m radius. The sprinkler VYR-100 GRILLO has a unique double gift nozzle exit; The main output is 28 degree angle to the horizontal plane and 26 degrees high. Their average time of rotation comes to be approximately 40 sec. / 360 (3 BAR, 4.40 x2, 40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 35x35 meters to 52x52 meters rectangular frames, and 43x37 meters to 64x56 meters triangular frames.
The most common use given is irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers.

Get more information from your nearest distributor

Contact us now

Models

Cañon de Riego VYR-100 GRILLO

  • Weight: 4600 gr.
  • Units per box: 4
  • Weight per box: 20 kg.

Specifications

Reach: 25 - 38 m.
Flow: 8,500 - 27,200 l/h.
Working pressure: 2.5 - 4.5 bar.
Area: Part or full circle.
Nozzles: One main multi-jet nozzle with built-in  deflector pin.
Trajectory angles: 28º.
Maximum stream height: 4 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 49x49R, 50x50T, 50x62T meters.

Dimensions

  • Height: 37 cm.
  • Width: 70 cm.
  • Weight: 4600 gr.
  • Units per box: 4
  • Weight per box: 18,5 kg.

Applications

  • Irrigation for sport fields.
  • Travelling sprinkler irrigation.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Turbine-driven Rain-Gun, high flow for agriculture.
  • 2" female connection.
  • Made of aluminium, brass, plastic and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angle of 28º.
  • Special design for long reach.
  • Used in full coverage irrigation with very high flow.

Options

  • Threads in BSP or NPT under demand.
  • Foldable tripod for mobile installation.
