VYR-6060

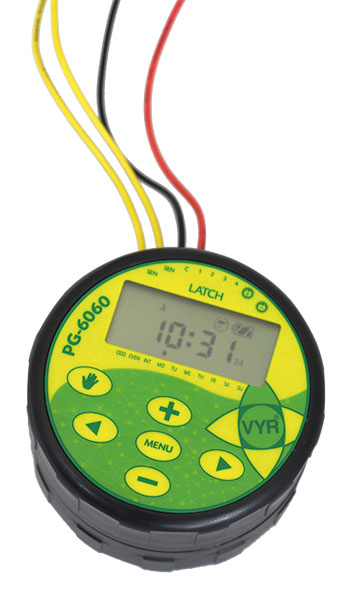

Battery operated Controller:Amphibian PG-6060

Its water saving programming features maximize water efficiency by letting you build highly-customized programs.
Number of stations: 1& 4 stations + main valve
Number of start times : up to 18 cycles starts per day

Get more information from your nearest distributor

Contact us now

Models

PG-6060 Anfibio-Latch 1 station.

PG-6060 Anfibio-Latch 2 stations.

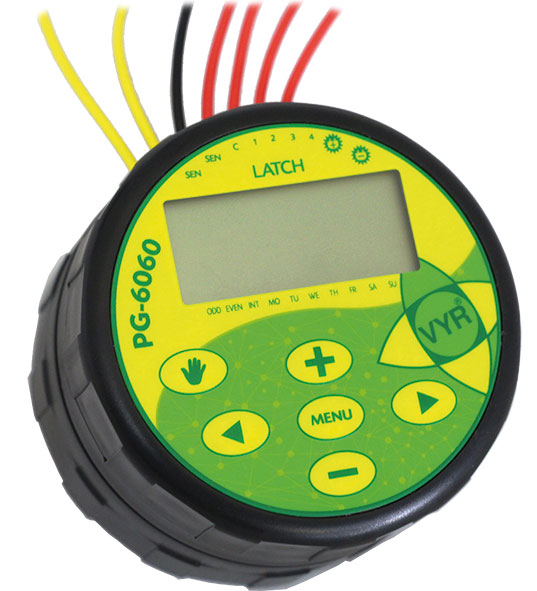

PG-6060 Anfibio-Latch 4 stations

PG-6060 Anfibio-Latch 6 stations.

PG-6060 Anfibio-Latch 1 station + 2 way solenoid

PG-6060 Anfibio-Latch 1 estación + 3 way solenoid (hydraulic)

PG-6060 Anfibio-Latch 1 station, with BlueTooth for APP

PG-6060 Anfibio-Latch 2 stations, with BlueTooth for APP.

PG-6060 Anfibio-Latch 4 stations, with BlueTooth for APP.

PG-6060 Anfibio-Latch 6 stations, with BlurTooth for APP.

PG-6060 Anfibio-Latch 1 stationwith BlueTooth + 2 way solenoid

PG-6060 Anfibio-Latch 1 estación + 3 way solenoid (hydraulic)

Specifications

Ingress protection: IP-68 (completely watertight and
submersible).

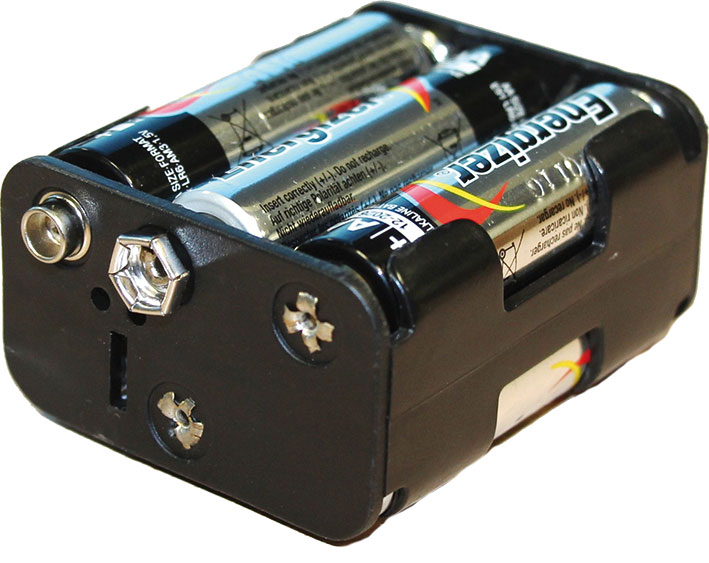

Voltage: 9 V ALKALINE battery.
Output: Latch.
Number of valves supported: 1 Latch solenoid (9V) per outlet at no more than 3 metres distance.
Terminal strip: cables of up to 1.5 mm2.

Dimensions

  • Height: 10 cm.
  • Width: 12 cm.
  • Weight: 300 gr.
  • Units per box: 1
  • Weight per box: 0,3 kg.

Applications

  • Suitable for isolated areas without electrical energy or with difficult access to the wiring.

Features

  • Water-Proof battery operated controller (9 Vdc alkaline).

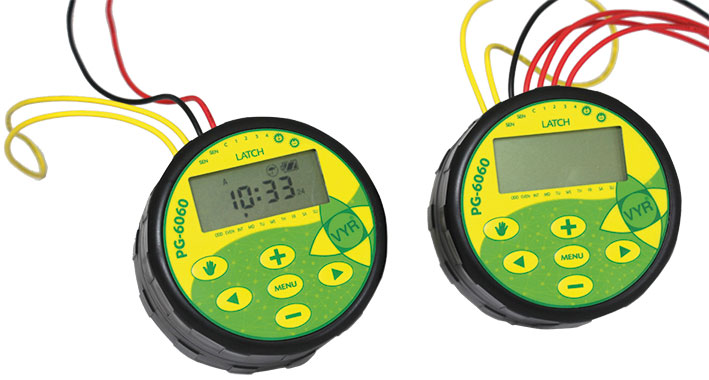

  • Number of stations: 1 and 4 LATCH stations + N/O sensor.
  • Number of programs: 1 program.
  • Number of initiations: 18 starts per day.
  • Duration of cycle: up to 7 days.
  • Programming times: from 1 minute to 12 hours per valve, with a minute countdown counter.
  • MANUAL STARTING of stations and programs with “countdown”.
  • Easy installation, programming and use because of its versatile design and logical control system.

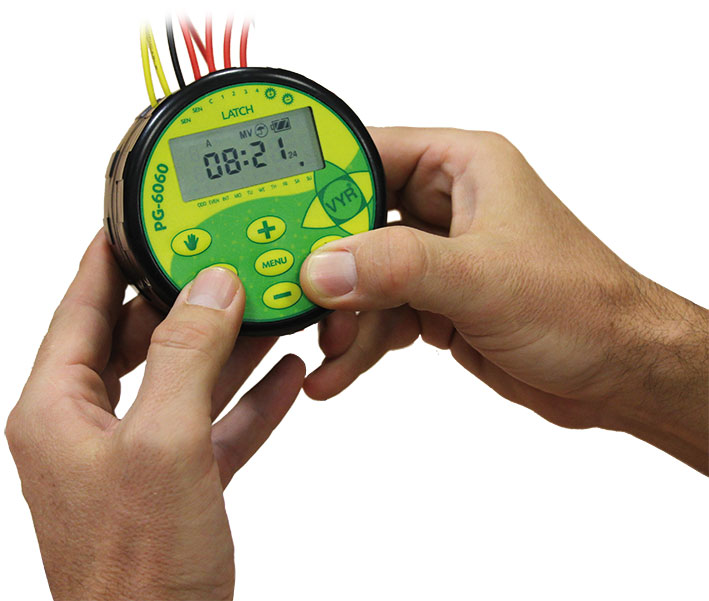

  • Ergonomic keyboard with 5 keys.

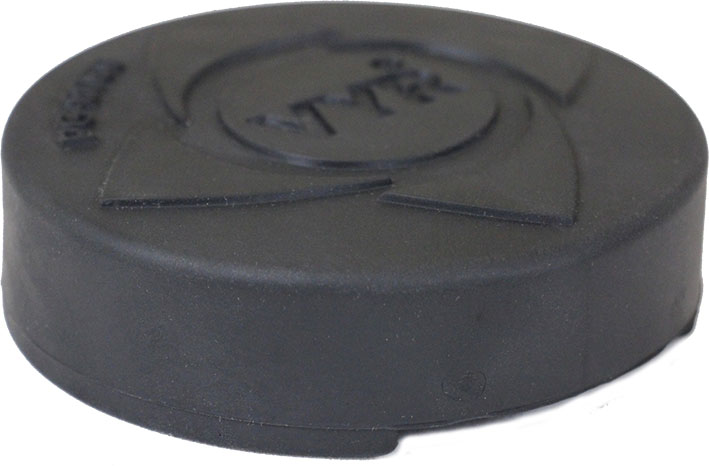

  • Rubber cover cap for display and keyboard dirt protection.
  • Digital screen with logical and easy to use icons.
  • PAUSE and SKIP IRRIGATION positions.
  • Water throughput adjustment between 25% and 100%.
  • Security system with low battery ALARM (it closes all the valves and blocks them until the old battery has been replaced).
  • Connection to sensor normally open (rain or temperatura sensor) for temporary blocking of irrigation.

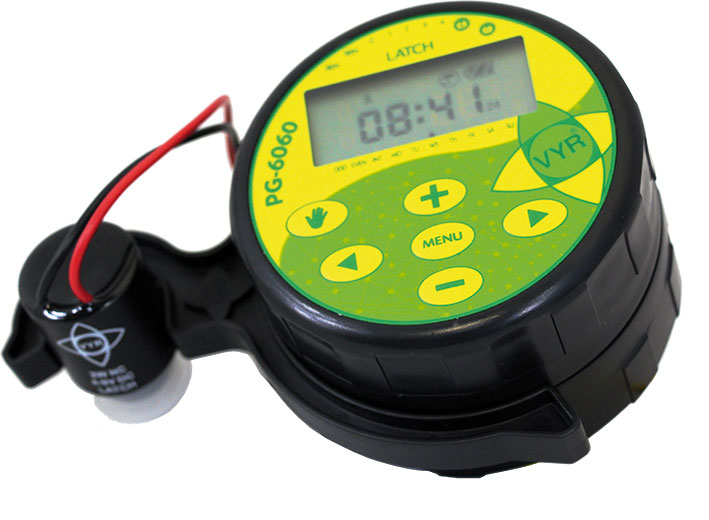

  • The 1 station model includes a 2-way latch solenoid; the model with 4 stations does not include the solenoids.

Options

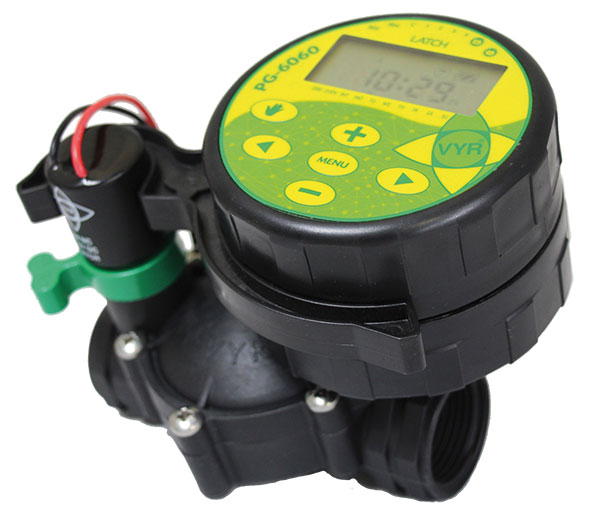

  • Kit of 1 station model + 1" high-flow electrically operated valve.
  • Kits for agricultural use with 3-way latch solenoids with hydraulic valves (if specifically ordered).
