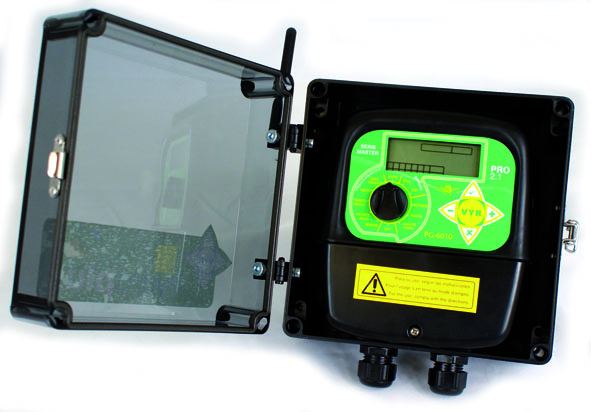

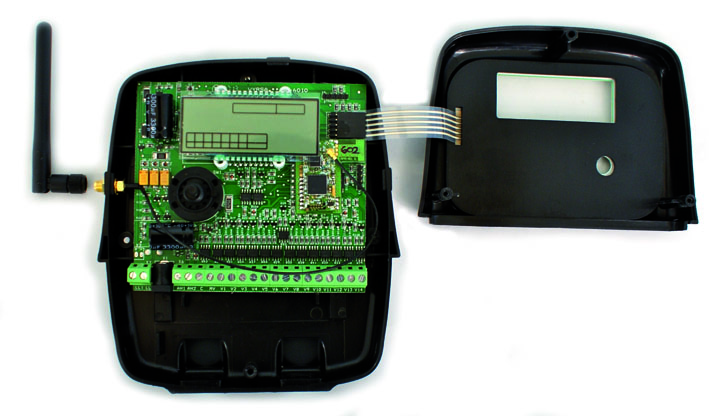

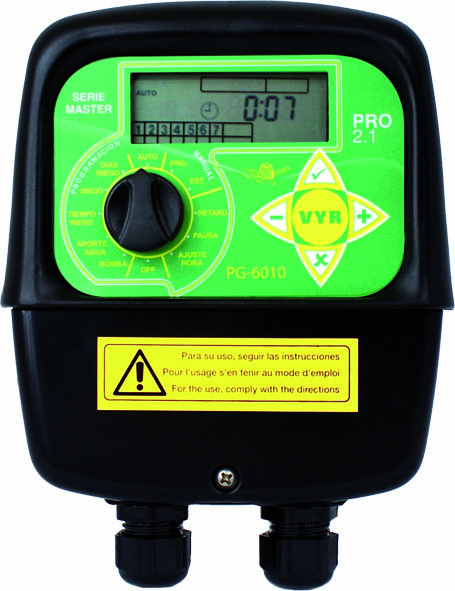

Battery operated controller PG-6010

Ideal for difficult-to-reach areas with no power !

Battery operated controller of 5, 8 & 14 stations + Main valve.

Get more information from your nearest distributor

Contact us now

Models

PG-6010 MASTER-LATCH 9V. 5 estaciones.

  • Weight: 300 gr.
  • Units per box: 1
  • Weight per box: 0,3 kg.

PG-6010 MASTER-LATCH 9V. 8 estaciones.

  • Weight: 300 gr.
  • Units per box: 1
  • Weight per box: 0,3 kg.

PG-6010 MASTER-LATCH 9 V. 14 estaciones.

  • Weight: 300 gr.
  • Units per box: 1
  • Weight per box: 0,3 kg.

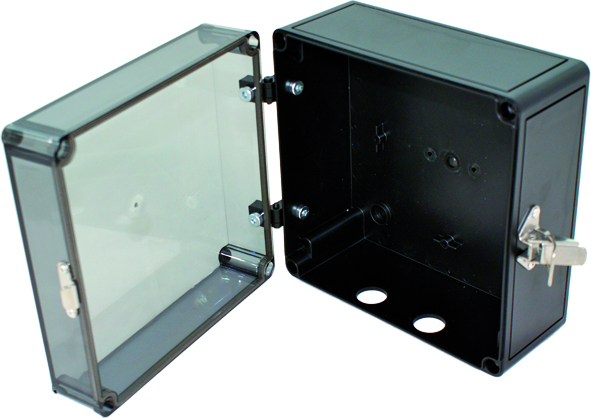

Caja IP-66 CERRADURA DE SEGURIDAD

  • Weight: 820 gr.
  • Units per box: 1

Specifications

Voltage: 9V alkaline battery or 12VDC transformer.
Output: 30 mA.
Number of eligible valves 1 Solenoid Latch output of 9-12V by no more than 3 meters away.
Terminal strip: cables up to 1.5 mm.

Dimensions

  • Height: 22 cm.
  • Width: 16 cm.
  • Weight: 460 gr.
  • Units per box: 1
  • Weight per box: 0.5 kg.

Applications

No information available

Features

  • Number of stations: 5, 8 and 14 stations + master valve.
  • Number of programs: 4 independent and overlapping programs.
  • Number of starts: 6 starts per program.
  • Cycle time: 7 days.
  • Programming times: from 1 minute to 12 hours per valve, with down counter in minutes.
  • MANUAL STARTING of stations and programs with "countdown".
  • NEW!!! Programmable delay between stations and / or pump.

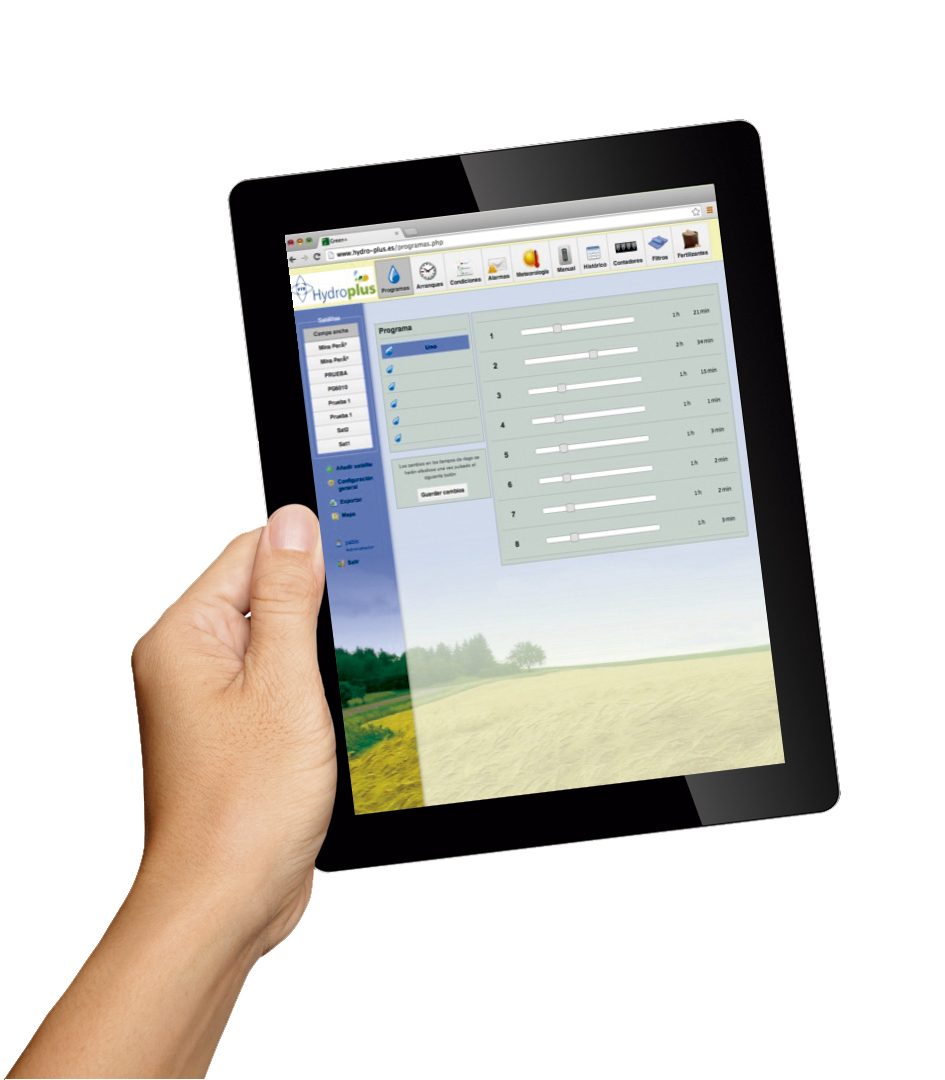

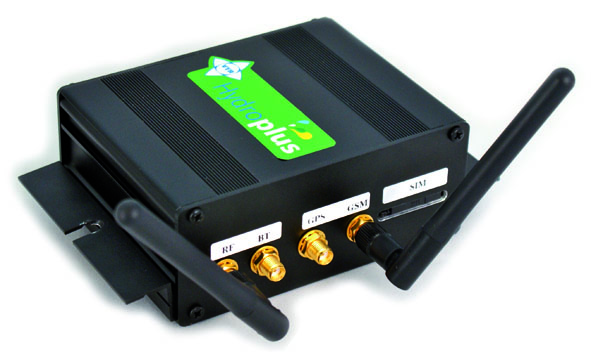

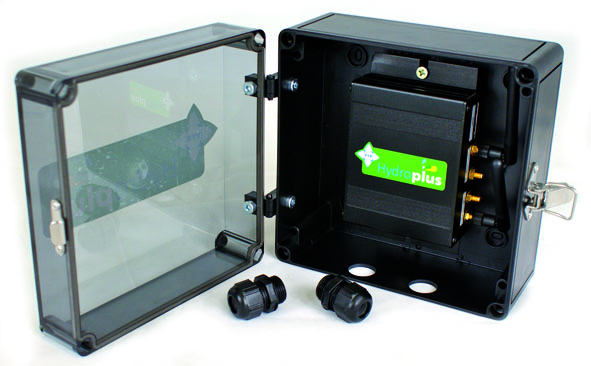

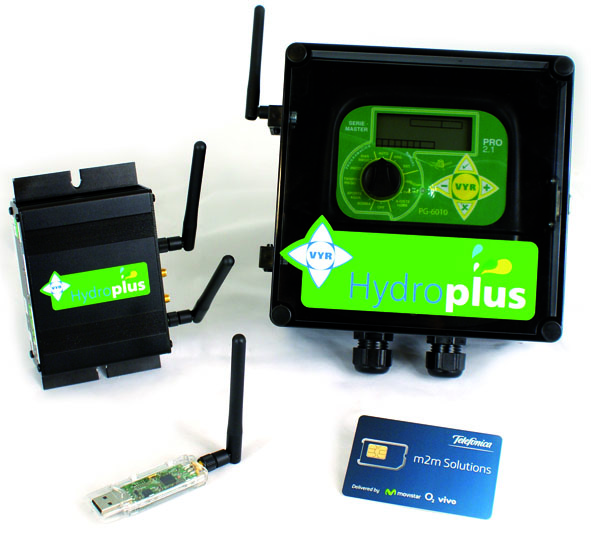

  • NEW!!! Communication port for remote control by Green-Plus, Hydro-Plus or Green-Pad.
  • NEW!!! Press-box outlets and lock tow.

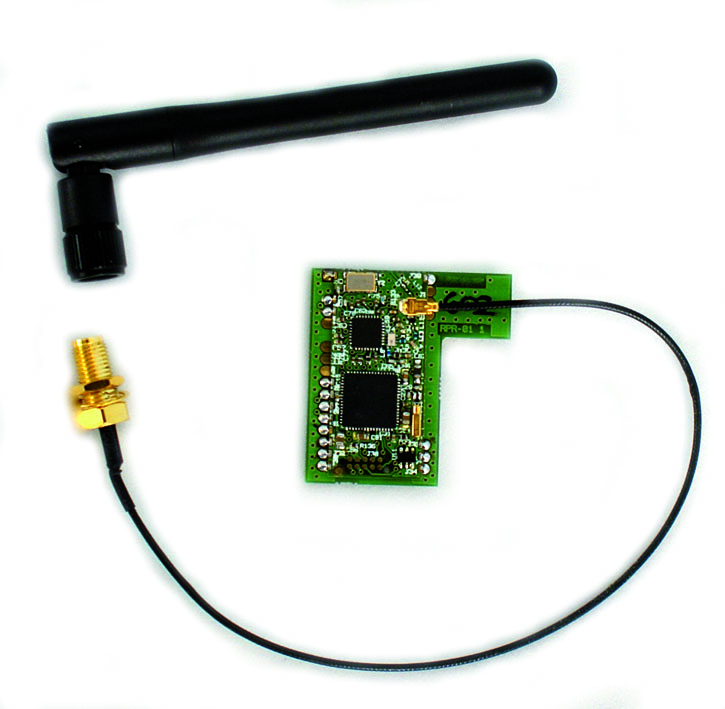

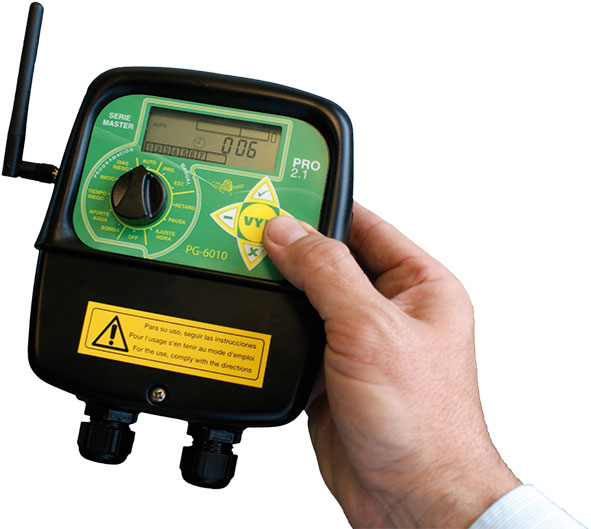

  • NEW!!! External antenna jacks.

Options

  • Outdoor box.

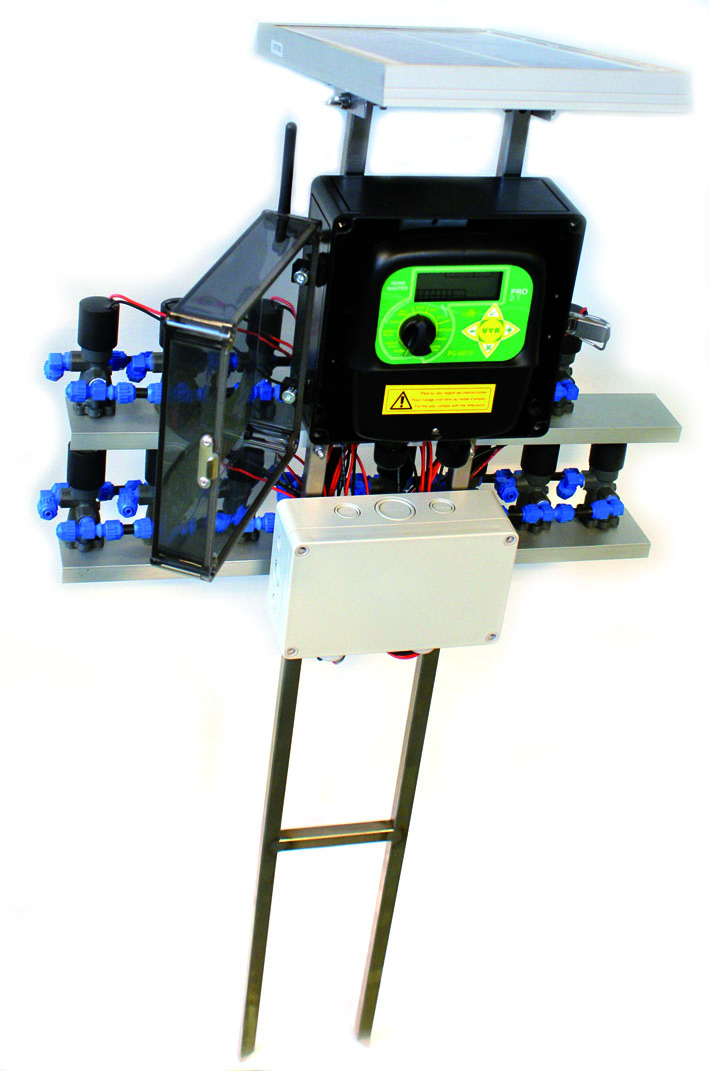

  • Solar kit of 12 Vdc.
