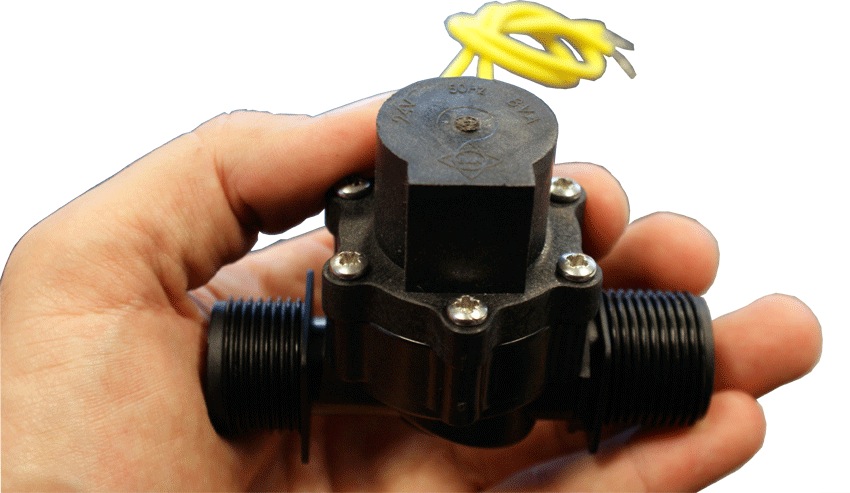

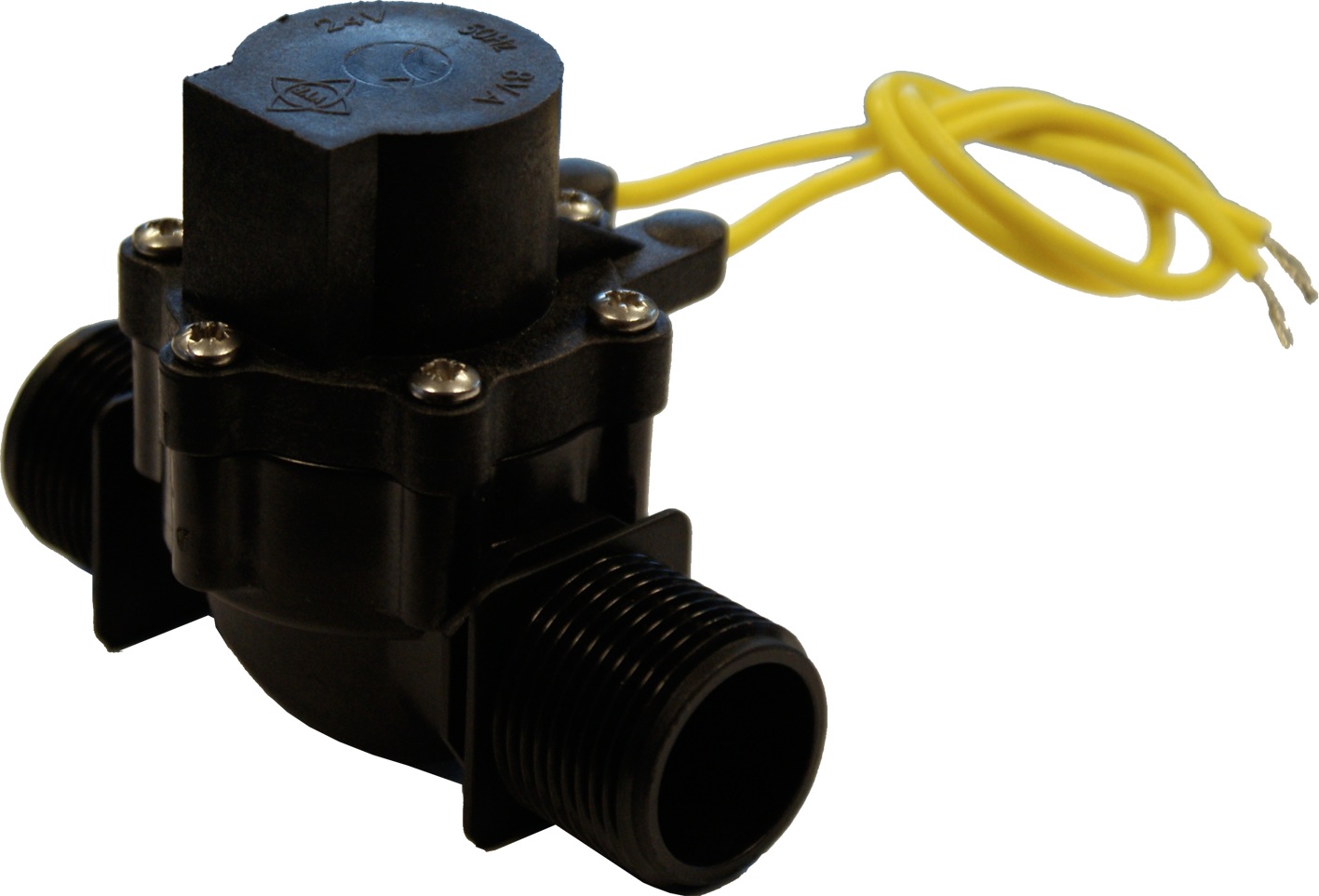

VYR-6230

Specifications

No information available

Dimensions

• Height: 5 cm.
• Width: 4 cm.
• Weight: 110 gr.
• Units per box: 10
• Weight per box: 1,1 kg.

Applications

• Drip irrigation and micro-sprinklers.
• Threaded directly to a sprinkler to create automatic sprinklers with independent opening valve.

Features

• 2-way microvalves.
• 3/4" male thread BSP.
• Normally closed.
• Valve body made of nylon 6.6 with 30% fibreglass.
• Permanently clean because of the built-in steel mesh filter.
• Assembled with screws and stainless steel spring.
• Nitrile diaphragm.
• 24 VAC solenoid.
• Working temperature between 2 and 80 degrees.
• Recommended working pressure of 1 to 10 bar.
• Opening and closing response time of 0.5 seconds.
• Resistance test carried out for 25,000 cycles at 15 BAR and 80 degrees.
• Complies with standard UNE 68-074-86/ISO 7714

Options

• Valve with 12 VDC solenoid.
• Valve with 9-12 VDC LATCH solenoid.
