HYDRO-PLUS

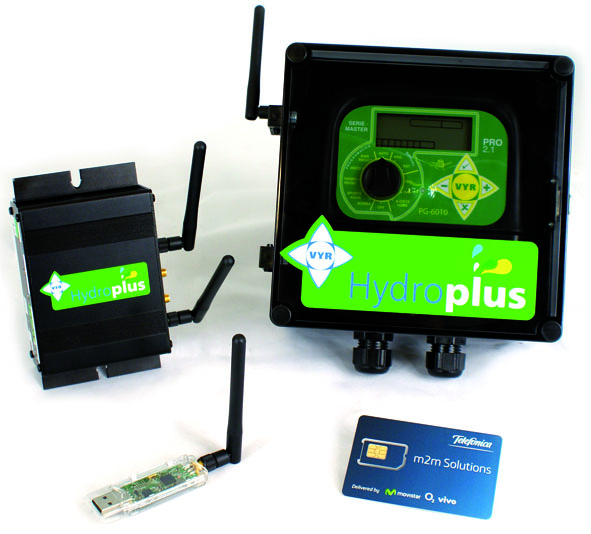

Tele-Control and Management for Irrigation Systems

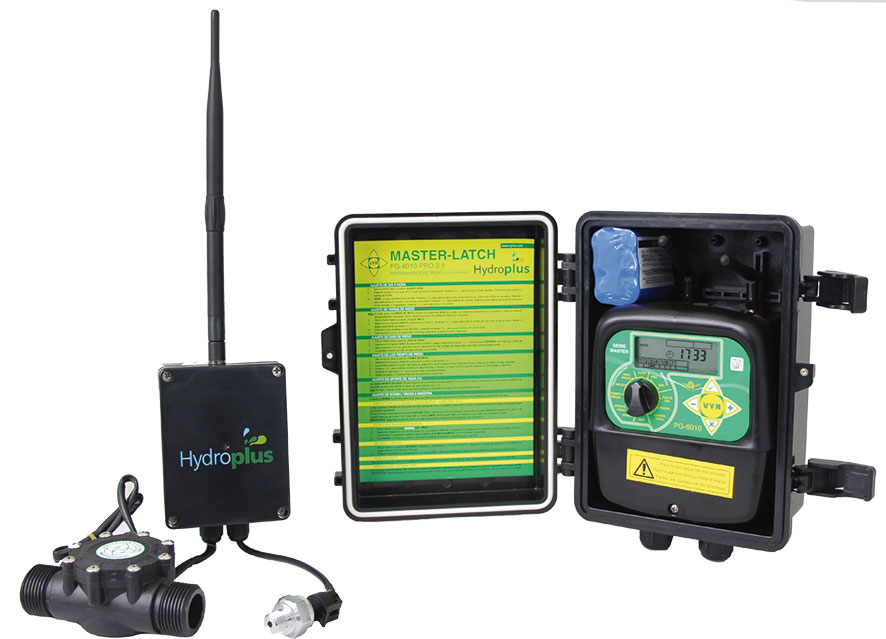

The best solution for the intelligent and automatic control of your irrigation system is called Hydro-Plus. The integration of different control and management equipment makes this tool one of the most sophisticated in the market for its low consumption autonomy, long-range communications, and powerful software with self-readjusting algorithms of the "Water Balance". The communication equipment are:

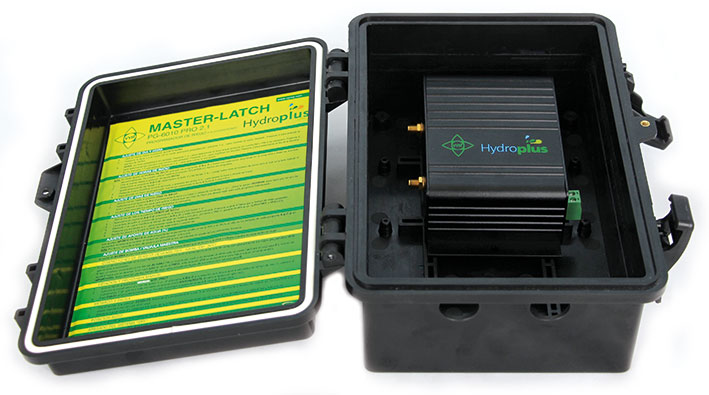

- CAP: The centralizer responsible for linking communication between programmers. It has 3 model options:
- CAP GSM / RADIO (standard): Radio communication with the TRIs of the programmers and connection to the Internet.
- CAP GSM / RADIO + SENSORIAL: It also includes a card with 6 digital inputs, 4 analog and an RS485 port
- CAP WIFI-ETHERNET: Communication in areas with Internet access point through a modem.

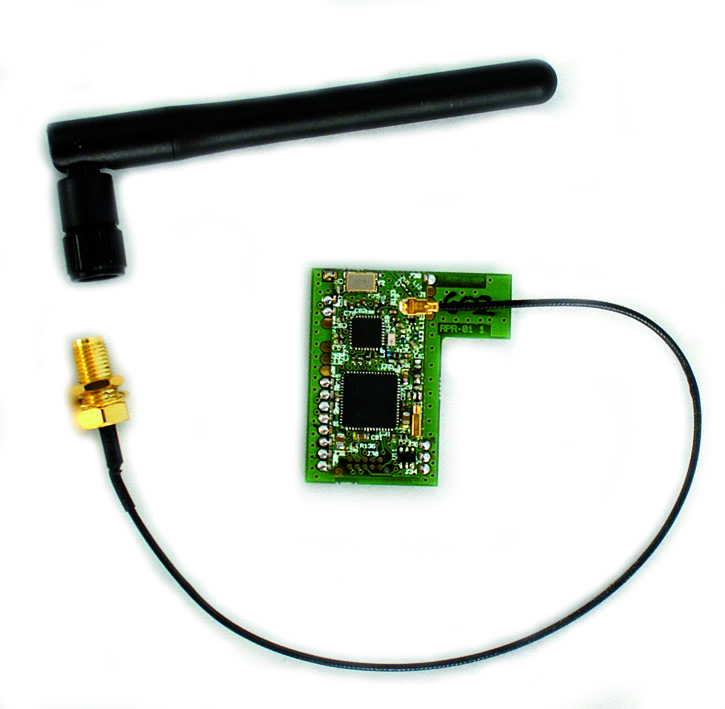

- TRI: The mini-card that is placed in the programmers and MSRs to establish radio communication.

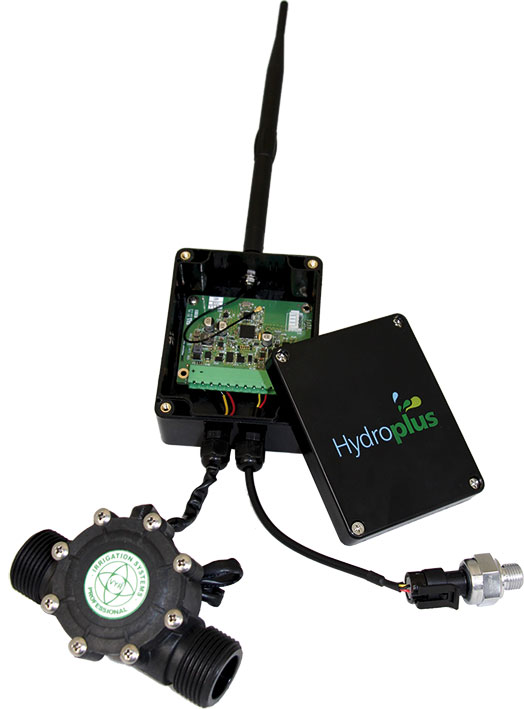

- MSR: The remote sensory module with 2 digital inputs and 2 analog inputs for remote sensoring in culture.

Get more information from your nearest distributor

Contact us now

Models

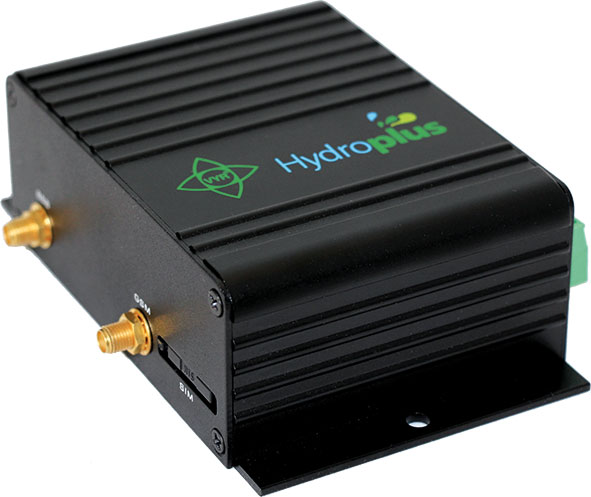

CAP GPRS-RADIO

  • Weight: 300 gr.

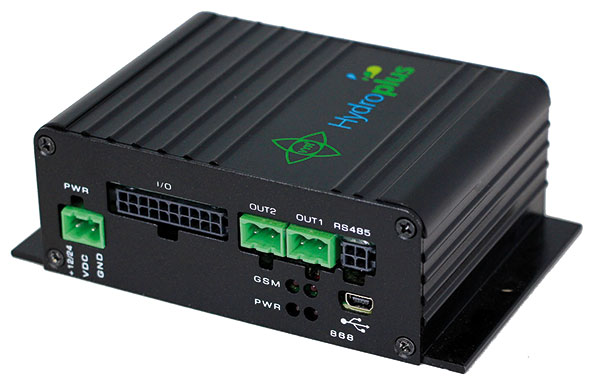

CAP GPRS-RADIO + SENSORS

  • Weight: 300 gr.
  • Units per box: 1

TRI "Integrated Radio Card"

MSR "Remote Sensor Module"

PLUS LICENSE 1 year, 7 controllers

  • Units per box: 1

MASTER LICENSE 1 year, 18 controllers (including SIM card)

  • Units per box: 1

Specifications

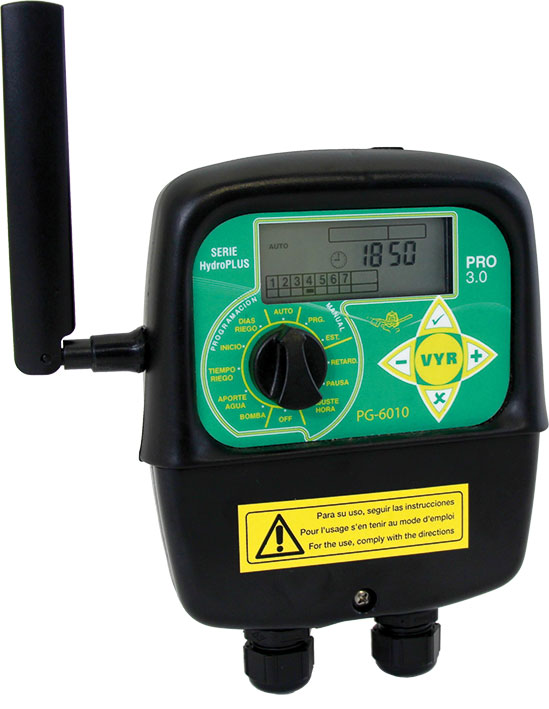

GPRS / WIFI / RADIO communications card for remote communication with PG-6010 and PG-6015 programmers.

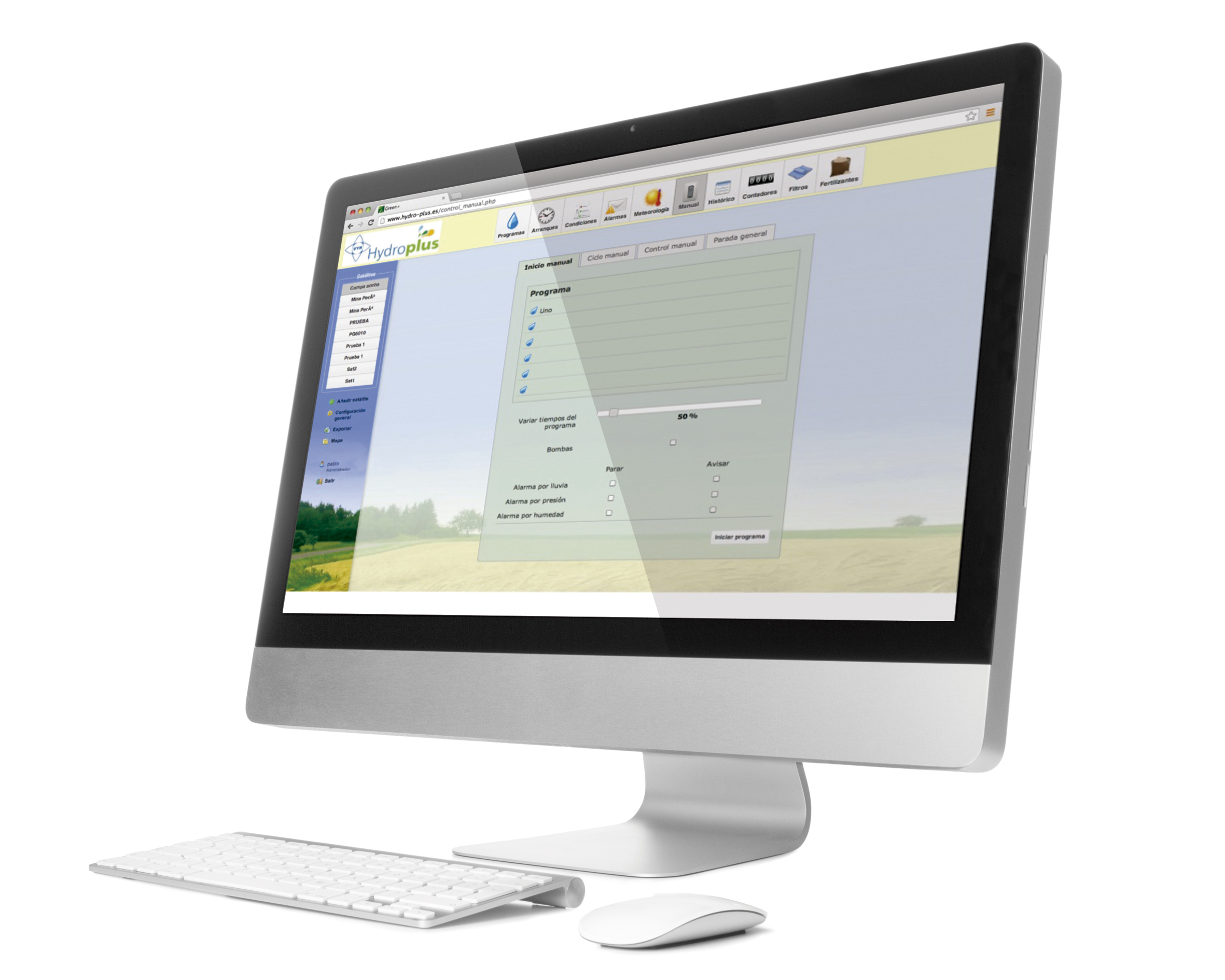

Hydro-Pad application for free download for mobile devices and Hydro-Plus web environment application.
Digital inputs: 4 digital inputs for reading flow meters, pressure transmitters, humidity, etc.
Analog inputs: 3 analog inputs for rain sensors, presence sensors, anemometers, etc.
Relay outputs: 2 relay outputs for contactors (pump start)
Remote connections: radio links for the programmer and radio antennas (cables and antennas included)
Outputs for GPRS and RADIO antennas (antennas included.
Window of accommodation for SIM card.
Very simple configuration and start-up.
Low consumption power with 12 Vdc. Solar charging system integrated in the plastic box to prevent vandalism and theft.

Dimensions

No information available

Applications

  • The best solution for intelligent and automatic control of your irrigation system is called Hydro-Plus. The integration of different control equipment and management make this tool one of the most sophisticated in the market for its range of low-power, long-range communications, and powerful software algorithms for auto-reset "Water Balance".

Features

  • GPRS / WIFI / RADIO communications card for remote communication with PG-6010 and PG-6015 programmers.
  • Hydro-Pad application for free download for mobile devices and Hydro-Plus web environment application.
  • Digital inputs: 4 digital inputs for reading flow meters, pressure transmitters, humidity, etc.
  • Analog inputs: 3 analog inputs for rain sensors, presence sensors, anemometers, etc.
  • Relay outputs: 2 relay outputs for contactors (pump start)
  • Remote connections: radio links for the programmer and radio antennas (cables and antennas included)
  • Outputs for GPRS and RADIO antennas (antennas included.
  • Window of accommodation for SIM card.
  • Very simple configuration and start-up.
  • Low consumption power with 12 Vdc. Solar charging system integrated in the plastic box to prevent vandalism and theft.

Options

  • Ref. 602501: ACCESS POINT GPRS + RADIO.
  • Ref. 602511: CAP GSM + RADIO with SENSOR imputs (CAP+S).
  • Ref. 602505: ACCESS POINT WIFI + ETHERNET. Ref. 602502: INTEGRATED RADIO CARD (TRI).
  • Ref. 602503: Remote sensor module MSR (field sensors).
  • Ref. 602578: Radio wire of 2 meters and mounting base.

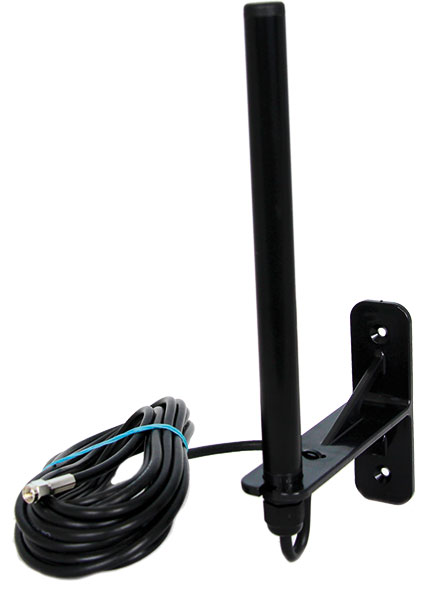

  • Ref. 602579: Orientable antenna.
  • Ref. 602580: Long distance plastic antena.

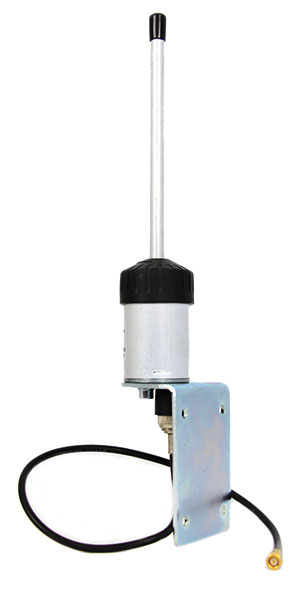

  • Ref. 602581: Long distance aluminum antena.
  • Ref. 602582: Long distance plastic bumpper antena.
  • Ref. 602583: Super-long distance omnidirectional plate antena.
