VYR-6150 HI-FLOW

Specifications

No information available

Dimensions

• Height: 29 cm.
• Width: 29 cm.
• Weight: 190 gr.
• Units per box: 20
• Weight per box: 4 kg.

Applications

• Professional landscaping, urban and commercial áreas, sports fields, golf courses, residential and private areas.
• Industrial use for fluid control & Water treatment.
• Drip irrigation and agricultural installations in greenhouses and fields.

Features

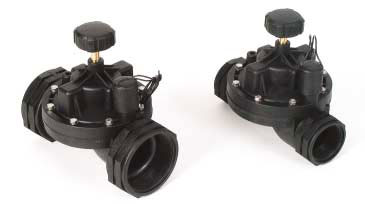

• Two way HIGH-FLOW valves, body design allows full flow.

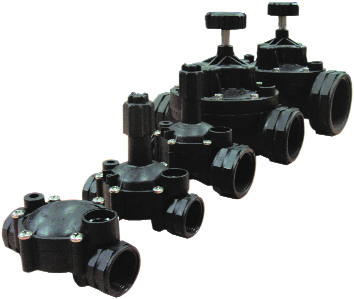

• 1", 1 1/2", 2" and 3" female thread BSP.
• Kit for manual opening with 1/4" lever turn.
• Valve body made of nylon 6.6 with 30% fibreglass.

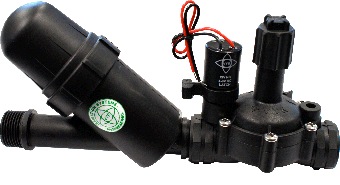

• Permanently clean because of the built-in steel mesh filter.
• Assembled with screws, shaft and spring made of stainless steel.
• Body with brass inserts for screws.
• EPDM diaphragms reinforced with fabric.
• 24 VAC solenoid (SEE OPTIONS).
• Working temperature between 2 and 80 degrees.
• Recommended working pressure of 1 to 12 bar.
• Opening and closing response time of 0.5 seconds.
• Resistance test carried out for 25,000 cycles at 15 bar and 0-80º Celsius degrees.
• Built-in flow regulator.
• Flow range between 38 and 240 l/min.
• Removable from the upper section for repair or replacement of parts.
• Recomended working pressure of 1-10 BAR. Works at very
• low flows and pressure (0,6 BAR), ideal for drip irrigation.
• Resistant when operating with wastewater.
• Complies with standard UNE 68-074-86/ISO 7714

Options

• Manual driving kit.
• Pressure regulator kit.
• Valve with 12 VDC solenoid.

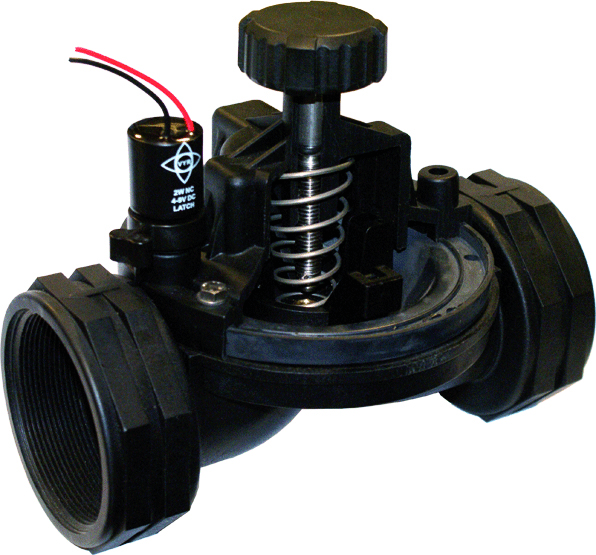

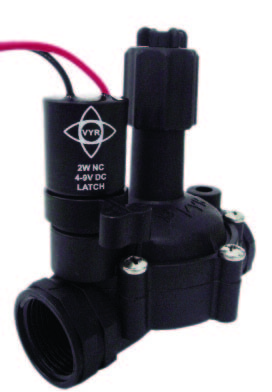

• Valve with 9-12 VDC LATCH solenoid.
